O.S. Engine 30 VG(P)-X  [OS-13970]

O.S. Engine 30 VG(P)-X
Price:
£185.00
Brand:
O.S. Engine
Model:
OS-13970
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - Engine / Glow Plug - Car Engines category
Write a review

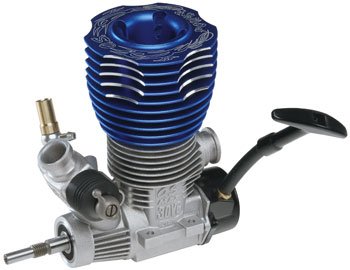

Here is the O.S. Max 30VG(P)-X Rear Exhaust Monster Truck motor with Recoil Starter and Pilot Type Crankshaft.

INCLUDES:

  • O.S. Max 30VG(P) back Exhaust Monster Truck engine with Pull Starter, illustrated manual, #8 radiance plug and #203 air conditioning filter, two foam filters and artificial exhaust ring

SPECS:

  • Displacement: 0.298 cu in (5.0cc)
  • Bore: 0.728" (18.5mm)
  • Stroke: 0.717" (18.2mm)
  • Practical RPM: 4,000-36,000
  • energy Production: 3.0 ps/28,000 RPM
  • fat: 14.4oz (408g)
  • Crankshaft Size: 1/4-28
  • Factory Needle Valve Setting: 2-3/4 turns available from fully closed
  • Distance Between Mounting Holes same part: 0.83" (21mm)
  • Distance Between Mounting Holes Opposite Side: 1.4" (37mm)
  • Distance Between Mounting Holes Diagonal: 2.3" (59mm)
  • Height Bottom of Mounting Ears to Top of Cylinder Head: 3.8" (97.7mm)
  • Width of Mounting Ears: 1.8" (45mm)
  • Width of Crankcase Below Mounting Ears: 1.2" (30.8mm)
  • Distance from Front Bearing so that you can complete of Crankshaft: 1.2" (29.5mm)
  • Distance from Center of motor to Front Bearing: 1.7" (44mm)
  • Distance from Center of engine to Starter: 1.5" (38.5mm)
