XRAY 301578 X4 Upper Clamp Set for Inner Shock Position  [XR-301578]

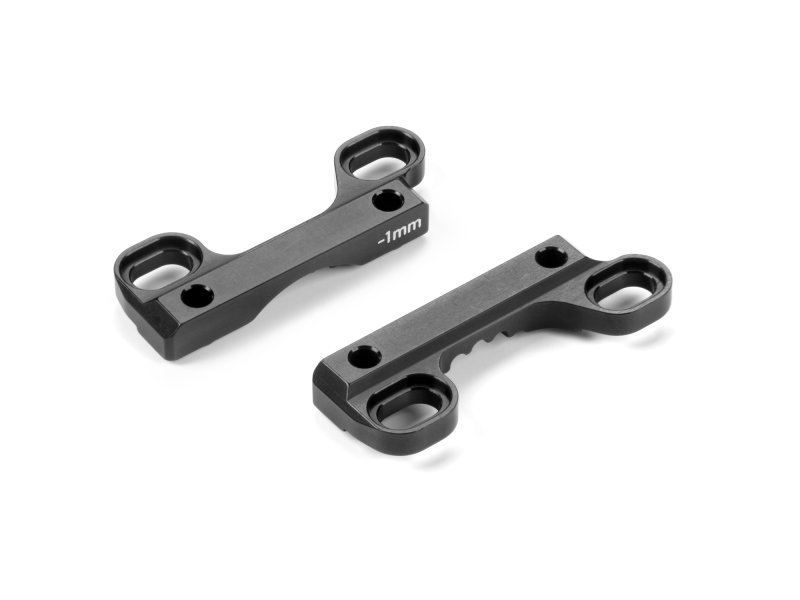

XRAY 301578 - X4 Aluminium Upper Clamp -1MM - Inner Shock Position - Swiss 7075 T6 (L+R)
Price:
£32.21
Brand:
XRAY
Model:
XR-301578
Condition:
Brand New
Write a review
alt="XRAY 301578 - X4 Aluminium Upper Clamp -1MM - Inner Shock Position - Swiss 7075 T6 (L+R)" title="XRAY 301578 - X4 Aluminium Upper Clamp -1MM - Inner Shock Position - Swiss 7075 T6 (L+R)"

Control and Consistency with XRAY 301578 Clamps

The XRAY 301578 X4 Aluminum Upper Clamp Set is aimed at improving handling where traction is high. Forged from Swiss 7075 T6 aluminum, the clamps bring the inner pivot 1mm closer to the centre, lengthening the upper arm to cut camber gain and deliver steadier mid-corner steering while reducing traction roll on grippy tracks.

Smart Engineering for Reduced Part Count

These reinforced upper clamps increase impact resistance and are compatible with the inner shock mounting style. Caster inserts permit swift setup changes and centring pins ensure accurate fitting and better crash resilience. Screws located beneath the caster inserts lock them in place and function as pivot ball mounts for the upper arms, lowering component count and overall weight.

Specifications

  • Material: Swiss 7075 T6 Aluminum
  • Design: Black Anodized Finish
  • Compatibility: XRAY X4 Series
  • Function: Reduces Camber Gain, Improves Steering

Well suited for racers wanting improved mid-corner balance and less traction roll, the XRAY 301578 X4 Aluminum Upper Clamp Set provides a precise and durable chassis upgrade.
Remark :
Due to limited stock availability, please notice that some XRAY items may have to order from the factory and the ready time is around 4-6 weeks. Customer purchases the item is assumed to accept the waiting time which allows us to order directly from the manufacturer if the item is out of our warehouse.

How much change in handling should I expect?

You should notice reduced camber gain and firmer mid-corner steering along with less tendency to traction roll, especially on high-grip surfaces.

Are these clamps colour matched to standard X4 parts?

The clamps come with a black anodized finish that matches the X4 series aesthetics and provides corrosion resistance.

Do I need any special tools to fit them?

Basic metric hex drivers and a gentle torque approach are sufficient; use the centring pins to align components accurately during assembly.
