Kyosho 30861T3 LAZER ZX-5 Type 3 1/10 Electric 4WD Buggy  [30861T3]

Kyosho 30861T3 - 1/10 R/C Electric Powered 4WD Racing Buggy - LAZER ZX-5 Color Type 3
Price:
£173.50
Brand:
Kyosho
Model:
30861T3
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
category
Write a review

Precision-Oriented Buggy from Kyosho

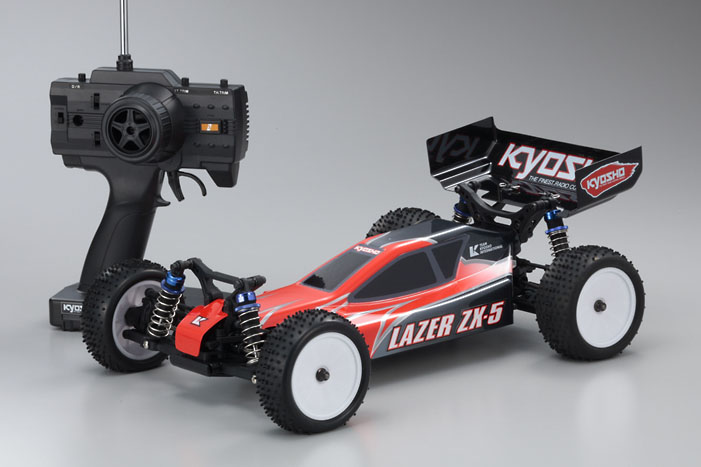

Hobbyists seeking a responsive off-road racer will appreciate the Kyosho 30861T3 LAZER ZX-5, a 1/10 scale electric 4WD ready-to-run buggy with race-minded layout. Its factory-fitted components and tunable design allow you to focus on handling and setup rather than initial construction. The following points summarise what makes it competitive on varied circuits.

Balanced Drive and Readyset Electronics

The LAZER ZX-5 employs a centre shaft drive for even power distribution and steady traction front to rear. Supplied as a Readyset, it includes a G20 stock motor and a high-capacity speed controller installed in the chassis so you can begin testing lines once batteries are fitted and charged.

Rigid Backbone and Controlled Suspension

A resin chassis with an X-backbone upper deck offers structural stiffness to aid consistent steering response. The mid-ship motor mount improves mass centralisation and reduces counter-torque effects. The suspension uses turnbuckle upper arms and an independent double-wishbone setup per corner to enhance tyre contact and controllability.

Specifications

  • Scale: 1/10
  • Length: 380mm
  • Width: 248mm
  • Height: 145mm
  • Ground Clearance: 24mm
  • Wheelbase: 270mm
  • Tread (F/R): 210mm / 200mm
  • Tire (F/R): Ø 86mm / Ø 86mm
  • Gear Ratio: 8.125:1
  • Weight: 1,650g (approx.)
  • Motor: G20 Stock Motor

Robust and tunable, the Kyosho LAZER ZX-5 is suited to drivers who want a stable, upgrade-friendly platform for club racing or competitive practice sessions.

Yes. The pre-assembled chassis and fitted electronics reduce setup time, leaving you to tweak suspension, tyre choice and gearing to suit track conditions.
The chassis accommodates a range of motor options, so you can upgrade to a more powerful unit provided the ESC and gearing are matched to the new motor's requirements.
Perform routine checks on gear mesh, bearings and driveshafts, clean accumulated dirt after off-road sessions and re-lubricate moving parts to reduce wear.
The LAZER ZX-5 is versatile across hard-packed dirt, prepared off-road circuits and club tracks; adjust tyres and damping to match surface grip for the best results.
