40Cr Steel 14T Motor Pinion MG214T/0.5M for RC Motors by GPM [MG214T/0.5M]

40Cr Steel Motor Gear 14T ( Module:0.5mm, Motor Tooth Diameter:2.2mm) - GPM MG214T/0.5M

Price:

£5.87

Brand:

GPM

Model:

MG214T/0.5M

GTIN:

4894538411492

Condition:

Brand New

Color Available:

Quantity:

Write a review

Description
FAQ

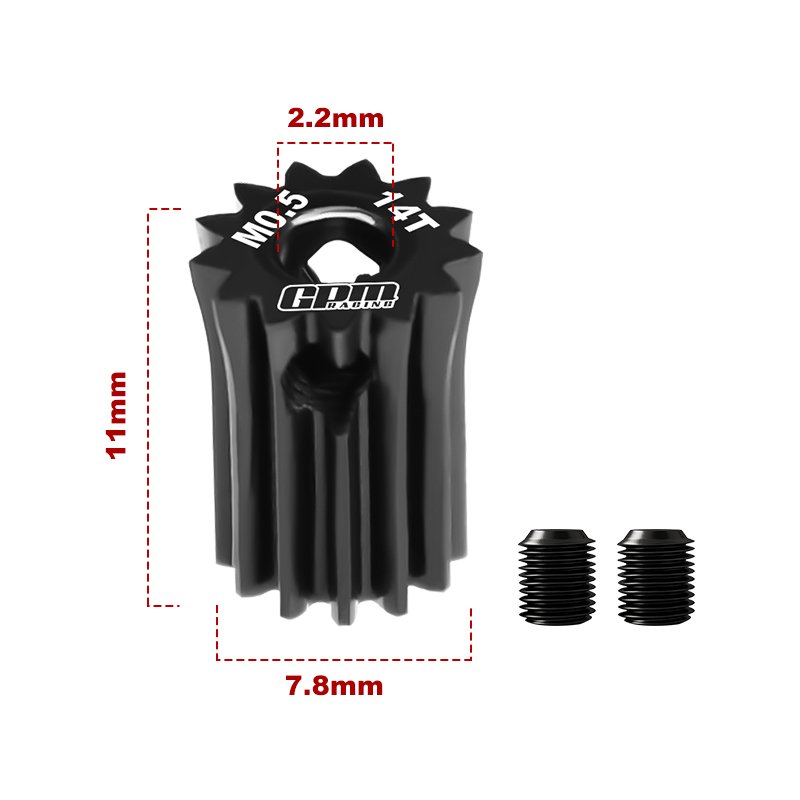

Technical overview of the pinion

The MG214T/0.5M motor pinion is designed for RC applications that need a hardened 14-tooth metal pinion. Manufactured in 40Cr steel, the pinion matches the 0.5mm module standard and is intended for motors with a 2.2mm motor tooth diameter and a round shaft bore.

Specification notes: 14 teeth (14T), module 0.5mm, round motor hole. The pinion is clamped to the motor shaft using two 3x3 set screws arranged opposite one another to ensure balanced force on the shaft. Confirm your motor and spur gear dimensions to ensure correct mesh and fit.

Service advice: set the gear mesh correctly and tighten the set screws in turns to prevent eccentric clamping. When changing gear ratios, proceed in small increments and check motor temperatures and drivetrain noise after each change.

How do I confirm my motor accepts this pinion?

Measure the motor tooth diameter to ensure it is 2.2mm and confirm the bore is round; if both match the 0.5mm module standard, the pinion should fit correctly.

What maintenance keeps this pinion performing well?

Regularly inspect the set screws for tightness, check the gear mesh for wear, and replace the pinion if teeth show significant wear or deformation to avoid further drivetrain damage.
