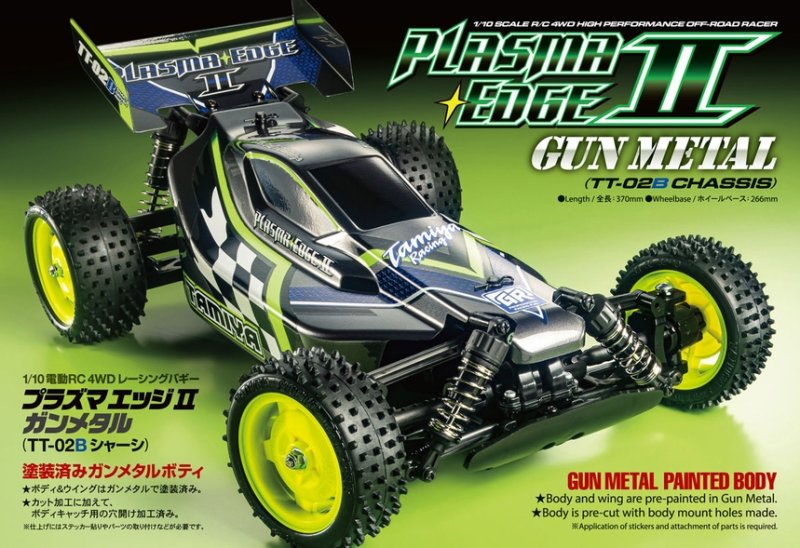

Tamiya 47446-60A Plasma Edge II 1/10 Gun Metal Special Edition TT-02B Kit (without ESC)  [47446-60A]

Tamiya 47446-60A - 1/10 Plasma Edge II Gun Metal Special (TT-02B chassis) (without ESC)
Price:
£57.31
Brand:
Tamiya
Model:
47446-60A
GTIN:
4950344066421
Condition:
Brand New
Write a review

Plasma Edge II: Clean Looks, Solid Platform

The Tamiya Plasma Edge II combines a refined aesthetic with a chassis built for off-road performance. The limited Gun Metal paint adds visual appeal while the TT-02B base delivers reliable handling and simple maintenance routines.

Key Features of the TT-02B

The TT-02B takes the TT-02 concept into off-road territory. It uses a shaft-driven 4WD arrangement on a skid-shaped chassis and a 4-wheel independent double wishbone suspension. Long suspension arms and white CVA oil dampers give predictable control over uneven ground, and the symmetric suspension geometry makes assembly and setup straightforward.

Drive and Tuning Details

The design allows practical tuning options. Gearboxes fitted with 4-bevel differentials help smooth power flow and aid cornering. For speed and acceleration tuning you can fit separately sold pinion gears to adjust ratios for different surfaces and track layouts.

Specifications

  • Scale: 1/10
  • Length: 370mm
  • Width: 250mm
  • Height: 160mm
  • Drive Type: 4WD
  • Motor: 540-Torque Tuned Brushed
  • Electronic Speed Control (ESC): Not included
  • Chassis Type: TT-02B
  • Suspension: Fully Independent Double Wishbone
  • Shock Damper: CVA Oil Filled
  • Body Material: Polycarbonate, Pre-painted
  • Terrain Use: Off-Road

The Plasma Edge II is well suited to modellers and racers who want a collectable finish combined with a chassis that is easy to tune and upgrade.

The kit is suitable for intermediate builders; it is not highly complex but benefits from careful assembly and basic soldering skills if you install certain electronics.
A standard 2S or 3S LiPo in the correct size for the battery tray will work, depending on motor and ESC choice; check clearance and mounting before buying.
Yes, hobbyists often add stronger driveshafts, upgraded dampers or higher torque servos to suit racing or more aggressive bashing.
Use thin vinyl strips or clear bumpers in high contact areas and avoid excessive exposure to heat to preserve the finish.
