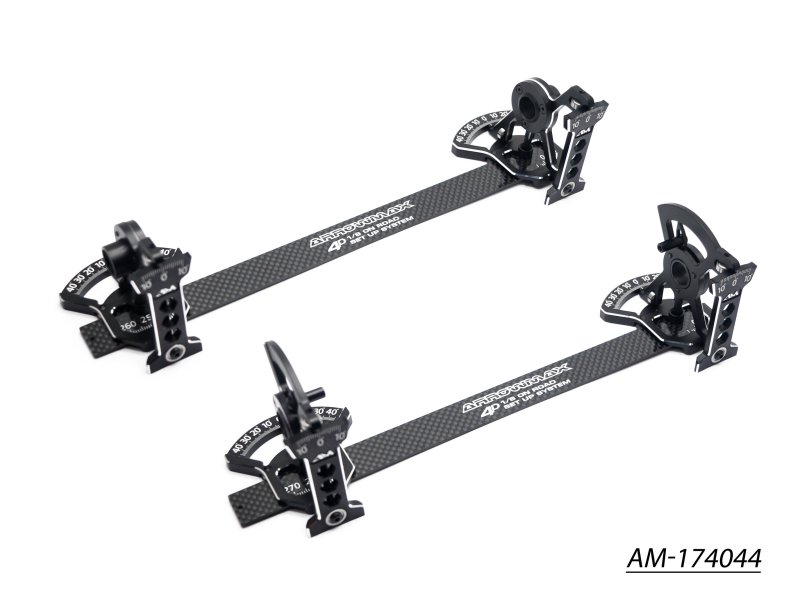

4D Set-up System for 1/8 Onroad Chassis - Arrowmax am-174044  [am-174044]

Alignment and fitment tool for 1/8 onroad

The Arrowmax am-174044 is a 4D set-up system intended for 1/8 onroad chassis work, offering controlled measurement and fine adjustment during setup. The device concentrates on alignment parameters that commonly affect handling: camber, caster, toe-in/out, track width and steering symmetry.

When swapping parts or testing different geometry the system acts as a verification platform, letting you confirm wheel positioning and left/right steering balance and repeat measurements as you trial components. This structured approach helps ensure parts changes translate into predictable changes on track.

Set the tool on a level surface, reference it to wheel hubs or a constant chassis point, then read measurement marks before and after you alter links, tie rods or toe blocks. Maintain a consistent sequence of measurements and record values so you can trace how component swaps affect alignment.

Ideal for workshops and pits, this set-up system provides a methodical way to check fitment and make alignment adjustments on 1/8 onroad models.
