Tamiya 71106 Mechanical Turtle Crawling Model Kit  [71106]

Mechanical Turtle Robocraft Kit Overview

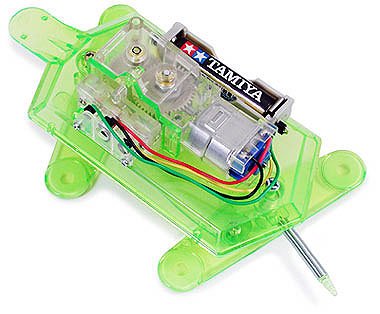

The Tamiya Mechanical Turtle is a compact Robocraft kit that demonstrates simple mechanical motion with a four-leg crawler. Its design reproduces a turtle-like gait and is useful for learning about linkages and gearing.

Movement Mechanism

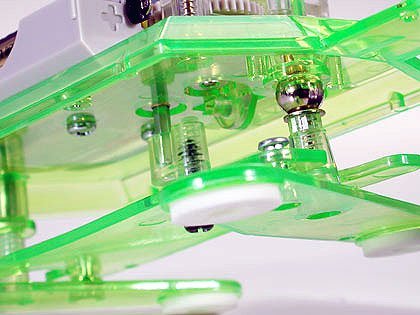

Rotation from the motor is passed through crank plates to the legs, creating a crawling motion. Front and rear legs come as single moulded parts, and the front leg plate articulates on a ball joint to mirror natural stepping. Transparent body elements provide a technical, see-through finish.

Assembly Details

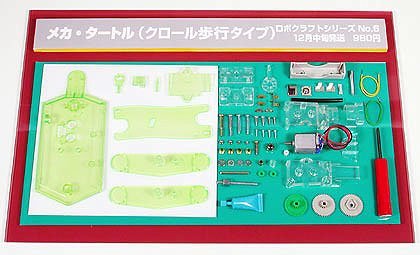

The package contains the body, leg components, motor, gearbox, switch and screws for assembly. The build uses both screws and snap-fit parts to strike a balance between strength and ease of assembly. Cable ends are rubber capped and marked for simple wiring.

Control and Running

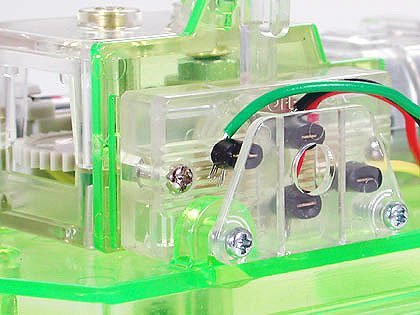

The clear switch with green transparent parts allows forward and reverse drive while enhancing the styling. Operate the model on firm, level surfaces to ensure consistent movement and avoid surfaces that increase drag.
