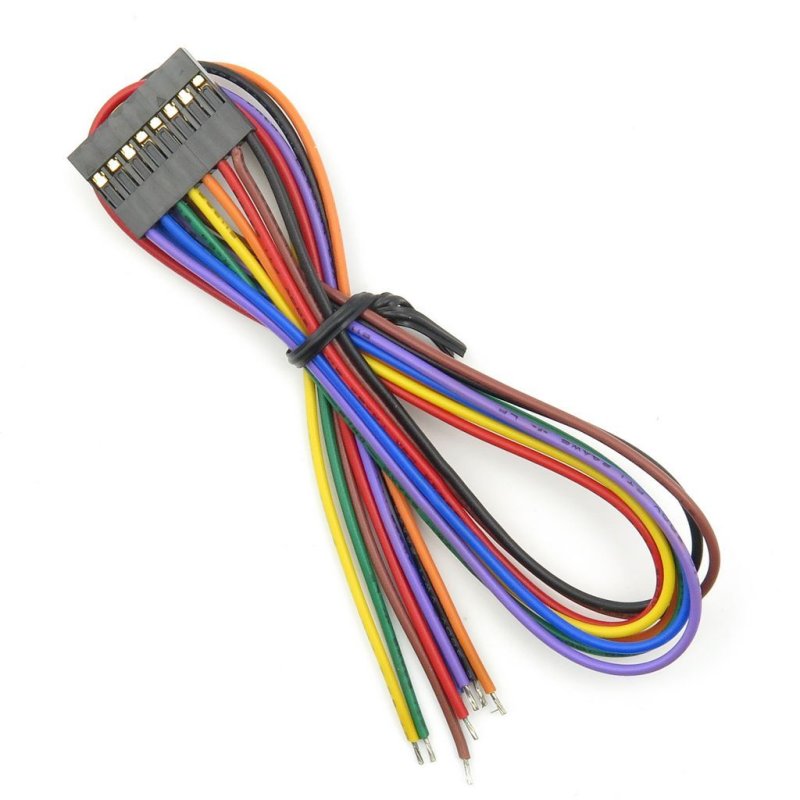

8-Pin Connection Cable for E-Station 701 - Bantam CSEAC111  [CSEAC111]

8-Pin Cable Overview for E-Station 701

This Bantam CSEAC111 8-pin connection cable links an E-Station 701 charger to a device under test or to a charge adapter. It is designed to give a direct, maintainable connection between charger and battery harness without changing charger settings or internal electronics.

Use the cable for bench charging, replacing a worn lead, or routing power to a custom adapter harness. Fitting is normally plug-and-play: match the 8-pin mating faces, press until pins seat, and ensure the connector locks before powering the charger. Verify the correct orientation to avoid misaligned pins.

For upkeep, keep the contact faces clear of debris, do not bend sharply at the connector exit, and store the cable loosely coiled to prevent kinks. On a workbench, route the lead to avoid accidental tugs that could stress the charger port or plug.

During setup and test procedures the cable functions as a practical support piece: it speeds charger repositioning, simplifies connection to monitor rigs or test jigs, and helps route power between charger and auxiliary devices. It does not perform diagnostics but supports charging and bench tasks effectively.
