9.5-12mm Servo Horn Drill Gauge Template - Futaba FUHT2 (EBS0161)  [FUHT2]

FUTABA 9.5-12MM SERVO HORN DRILL GAUGE TEMPLATE 2 EBS0161 (W/O PACKING)
Price:
£4.02
Brand:
Futaba
Model:
FUHT2
Condition:
Brand New
Write a review

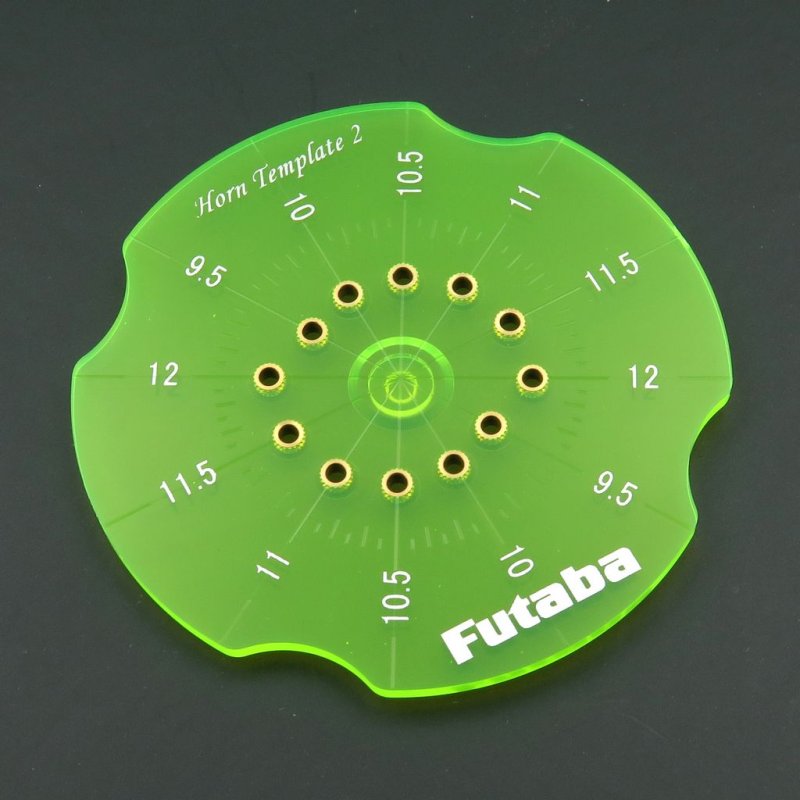

alt="FUTABA 9.5-12MM SERVO HORN DRILL GAUGE TEMPLATE 2 EBS0161 (W/O PACKING)" title="FUTABA 9.5-12MM SERVO HORN DRILL GAUGE TEMPLATE 2 EBS0161 (W/O PACKING)"

Template for checking 9.5-12mm horn hole centres

The Futaba FUHT2 template functions as an RC drill gauge to inspect and reproduce hole arrangements for servo horns sized 9.5-12mm. Use it to confirm spacing and alignment before drilling or when matching replacement horns during model tuning.

With the template you can compare an existing horn's hole pattern, mark new hole centres, or verify spacing on bespoke horns. The gauge is a straightforward layout and inspection tool that helps ensure consistent geometry for steering and linkage components.

Tip for use: press the template flat, align any guide edges, and mark centres through the apertures with a fine punch or marker. Keep a steady hand to preserve accuracy when transferring marks across multiple parts.

Are there recommended drill sizes after marking with the template?

Drill size depends on the fastener or clevis you plan to use; the template only locates centres. Match the drill to the hardware and deburr holes after drilling for a clean fit.

Can I store the template with other setup tools?

Yes. Keep it flat to avoid bends. A sheet protector or a flat compartment in your tool case will preserve its accuracy.

Is the gauge suitable for fine-tuning throw or servo geometry?

Indirectly. While it does not adjust throw, the gauge ensures consistent horn placement and geometry, which supports reliable link lengths and predictable steering behaviour.
