ARRMA Kraton Compatible Front Lower Suspension Mount 7075-T6 MAK008N/V1 by GPM  [MAK008N/V1]

ARRMA KRATON 6S EXB SPEED TRUCK 7075-t6 Alloy Front Lower Suspension Mount - GPM MAK008N/V1
Price:
£16.20
Brand:
GPM
Model:
MAK008N/V1
Please kindly input your name and email address, we will inform you once we have the restocking.
Write a review
alt="ARRMA KRATON 6S EXB SPEED TRUCK 7075-t6 Alloy Front Lower Suspension Mount - GPM MAK008N/V1" title="ARRMA KRATON 6S EXB SPEED TRUCK 7075-t6 Alloy Front Lower Suspension Mount - GPM MAK008N/V1"
alt="ARRMA KRATON 6S EXB SPEED TRUCK 7075-t6 Alloy Front Lower Suspension Mount - GPM MAK008N/V1" title="ARRMA KRATON 6S EXB SPEED TRUCK 7075-t6 Alloy Front Lower Suspension Mount - GPM MAK008N/V1"
alt="ARRMA KRATON 6S EXB SPEED TRUCK 7075-t6 Alloy Front Lower Suspension Mount - GPM MAK008N/V1" title="ARRMA KRATON 6S EXB SPEED TRUCK 7075-t6 Alloy Front Lower Suspension Mount - GPM MAK008N/V1"
alt="ARRMA KRATON 6S EXB SPEED TRUCK 7075-t6 Alloy Front Lower Suspension Mount - GPM MAK008N/V1" title="ARRMA KRATON 6S EXB SPEED TRUCK 7075-t6 Alloy Front Lower Suspension Mount - GPM MAK008N/V1"
alt="ARRMA KRATON 6S EXB SPEED TRUCK 7075-t6 Alloy Front Lower Suspension Mount - GPM MAK008N/V1" title="ARRMA KRATON 6S EXB SPEED TRUCK 7075-t6 Alloy Front Lower Suspension Mount - GPM MAK008N/V1"
alt="ARRMA KRATON 6S EXB SPEED TRUCK 7075-t6 Alloy Front Lower Suspension Mount - GPM MAK008N/V1" title="ARRMA KRATON 6S EXB SPEED TRUCK 7075-t6 Alloy Front Lower Suspension Mount - GPM MAK008N/V1"

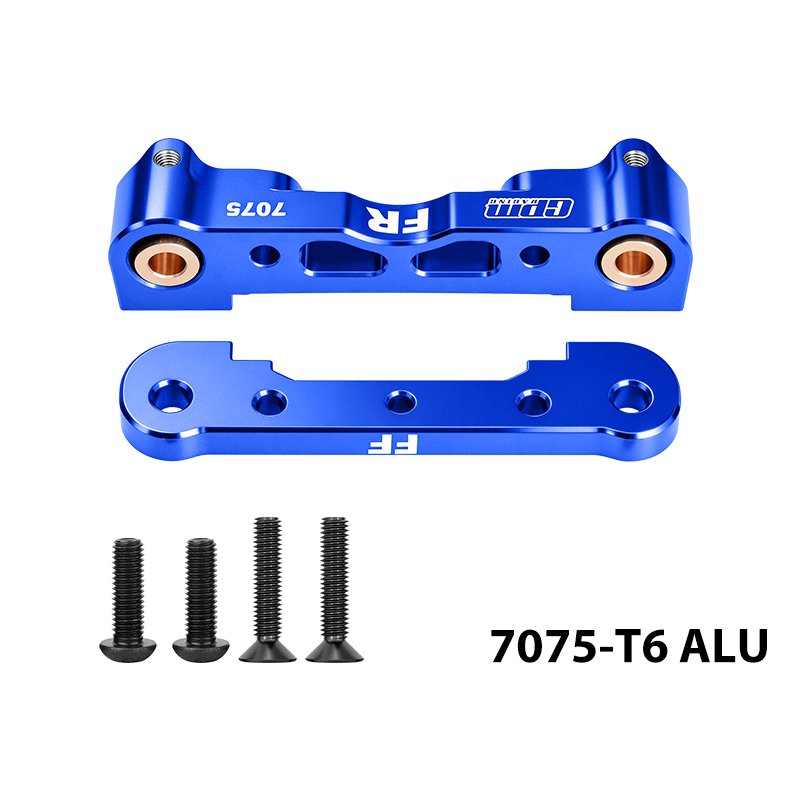

Replacement front lower suspension mount for ARRMA Kraton

This front lower suspension mount is a precision CNC-machined replacement intended for ARRMA Kraton 6S EXB style models. Manufactured from 7075-T6 aluminium and fitted with brass inserts at hinge bore locations, the part is designed to improve hinge-pin seating and reduce front-end play.

Design notes: 7075-T6 provides increased tensile strength and better wear resistance than typical chassis plastics, while brass inserts create a durable seating surface for hinge pins to limit clearance growth and stabilise arm movement. The item is supplied as a pair to replace factory parts AR330378 and AR330379.

Installation guidance: fit the mounts in the front gearbox and lower arm area, confirm hinge-pin alignment and torque fasteners to spec. Because the mounts alter local pivot fit and stiffness, re-check camber, toe and shock positions after installation to ensure expected handling characteristics.

Contents of package

  • Front Lower Suspension Mount - 2pcs
  • Grade 12.9 Black Round Head Screw 3x12 - 2pcs
  • Grade 12.9 Black Flat Head Screw 3x14 - 2pcs

Original Name / Part No:

AR330378,AR330379

Compatible Models

  • ARRMA 1/8 Kraton 6S-106005/106015/106018
  • ARRMA 1/8 Outcast 6S BLX Stunt Truck Brushless-ARA8710
  • ARRMA 1/8 4WD Electric Talion 6S BLX-ARA106048
  • ARRMA 1/8 Kraton 6S BLX 4WD Brushless Speed Monster Truck-ARA106040
  • ARRMA 1/8 4WD Typhon 6S Blx Brushless Buggy-ARA106046
  • ARRMA 1/8 Notorious 6S BLX 4Wd Brushless Classic Stunt Truck-ARA106044
  • ARRMA 1/8 Outcast 6S BLX 4Wd Brushless Stunt Truck RTR-ARA106060
  • ARRMA 1/7 Infraction All-Road Street Bash 6S BLX-ARA109001
  • ARRMA 1/7 Limitless All-Road Speed Bash-ARA109011
  • ARRMA 1/7 Mojave 6S BLX Desert Truck-ARA106058
  • ARRMA 1/7 Infraction 6S BLX V2 All-Road Truck-ARA7615V2
  • ARRMA 1/8 4WD Kraton Extreme Bash Roller Speed Monster Truck-ARA106053
  • ARRMA 1/7 Fireteam Tactical Unit 6S BLX-ARA7618
  • ARRMA 1/7 Limitless V2 Speed Bash Roller-ARA7116V2
  • ARRMA 1/8 Kraton 6S V5 4WD BLX Speed Monster Truck-ARA8608V5
  • ARRMA 1/8 Notorious 6S V5 4WD Blx Stunt Truck-ARA8611V5
  • ARRMA 1/7 Mojave 4WD Extreme Bash Roller Desert Truck-ARA7204
  • ARRMA 1/7 Big Rock 6S 4X4 BLX Monster Truck RTR-ARA7612
  • ARRMA 1/8 Kraton 6S BLX 4X4 Extreme Bash Speed Monster Truck RTR-ARA8708
  • ARRMA 1/8 Kraton 6S EXB 4X4 RTR Brushless Speed Truck-ARA8708V6
  • ARRMA 1/8 Notorious 6S V6 4X4 BLX Brushless Stunt Truck RTR-ARA8611V6
  • ARRMA 1/7 Felony 6S BLX Street Bash All-Road Muscle Car RTR-ARA7617V2
  • ARRMA 1/7 Mojave 6S V2 4WD BLX Desert Truck-ARA7604V2
  • ARRMA 1/8 Outcast 6S BLX 4WD Brushless Stunt Truck-ARA106042
  • ARRMA 1/8 Talion 6S BLX 4WD Extreme Bash Speed Truggy RTR-ARA8707
  • ARRMA 1/8 Typhon 6S V5 4WD BLX Buggy-ARA8606V5
  • ARRMA 1/7 Limitless 8S AVC 4X4 RTR Brushless Street Speed-ARA7816
  • ARRMA 1/8 Kraton 6S 4X4 BLX Brushless Speed Monster Truck RTR-ARA8608V6

Sold as a pair to address hinge clearance and pivot stability on ARRMA 1/7 and 1/8 machines; perform a post-fit setup check to confirm steering and suspension geometry.

Which ARRMA variants will this fit?

This mount is compatible with a range of ARRMA 1/7 and 1/8 models listed above and replaces the front lower mounts AR330378 and AR330379 on those platforms.

Can I fit this to non-listed ARRMA models?

Fitment to other ARRMA variants depends on chassis revision; compare mounting bosses and hole spacing to the OEM parts before purchasing or plan minor adjustments if needed.

Are any modifications required for installation?

No modifications are expected for the listed models; install using the supplied screws and verify hinge-pin alignment and fastener torque during assembly.

Does the package include the correct screws?

Yes. The box contains the specified Grade 12.9 fasteners: round head 3x12 (2pcs) and flat head 3x14 (2pcs) for secure mounting.
