ARRMA MINI KRATON 3S Precision Motor Mount 7075-T6 MAKM018 by GPM  [MAKM018]

ARRMA MINI KRATON 3S 7075-T6 Alloy Adjustable Motor Mount - GPM MAKM018
Price:
£6.58
Brand:
GPM
Model:
MAKM018
GTIN:
4894538412406
Condition:
Brand New
Write a review
alt="ARRMA MINI KRATON 3S 7075-T6 Alloy Adjustable Motor Mount - GPM MAKM018" title="ARRMA MINI KRATON 3S 7075-T6 Alloy Adjustable Motor Mount - GPM MAKM018"
alt="ARRMA MINI KRATON 3S 7075-T6 Alloy Adjustable Motor Mount - GPM MAKM018" title="ARRMA MINI KRATON 3S 7075-T6 Alloy Adjustable Motor Mount - GPM MAKM018"
alt="ARRMA MINI KRATON 3S 7075-T6 Alloy Adjustable Motor Mount - GPM MAKM018" title="ARRMA MINI KRATON 3S 7075-T6 Alloy Adjustable Motor Mount - GPM MAKM018"
alt="ARRMA MINI KRATON 3S 7075-T6 Alloy Adjustable Motor Mount - GPM MAKM018" title="ARRMA MINI KRATON 3S 7075-T6 Alloy Adjustable Motor Mount - GPM MAKM018"
alt="ARRMA MINI KRATON 3S 7075-T6 Alloy Adjustable Motor Mount - GPM MAKM018" title="ARRMA MINI KRATON 3S 7075-T6 Alloy Adjustable Motor Mount - GPM MAKM018"

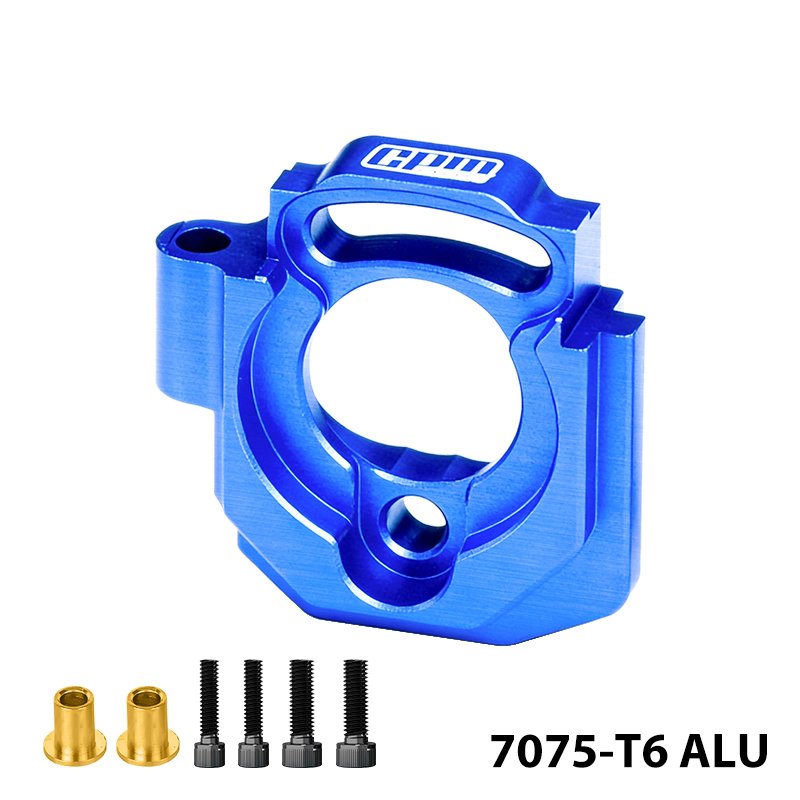

Precision motor mount in 7075-T6 for 1/16

The GPM MAKM018 motor mount is an aluminium upgrade created for ARRMA MINI KRATON 3S 1/16-scale models. CNC-machined from 7075-T6, the two-axis sliding system (upper/lower and left/right) allows accurate motor placement to achieve correct gear mesh without chassis modification. The component supports direct M3 screws and also works with the original M2.5 pattern when the supplied copper collars and hardware are used.

Preserved technical details include a 16mm motor hole spacing and compatibility with typical 2848 motor cans. Factory gear recommendations remain: with a 63T spur gear select pinions in the 15T–34T band. The unit replaces factory part number ARA-2673 and is supplied complete with fitting hardware.

Contents of package

  • Motor Mount - 1pcs
  • Copper Collar - 2pcs
  • Grade 12.9 Black Cap Head Screws 2.5x8 - 2pcs
  • Grade 12.9 Black Cap Head Screws 3x8 - 2pcs

Original Name / Part No:

ARA-2673

Compatible Models

  • ARRMA 1/16 MINI KRATON 3S DSC 4X4 RTR Brushless Speed Truck-ARA2508S
  • ARRMA 1/16 MINI KRATON 3S DSC 4X4 RTR Brushless Speed Truck-ARA2508

Does this mount keep original mounting patterns?

Yes. The mount accepts the original M2.5 pattern via the supplied copper collars, and it also allows direct M3 installation if you choose to use the larger fasteners.

Will this fit both ARA2508 and ARA2508S variants?

The mount is listed as compatible with the ARRMA 1/16 MINI KRATON 3S models shown in the compatibility block and is intended to replace factory ARA-2673 on those variants.

Are there any special setup notes for certain motors?

Motor hole spacing is 16mm and the mount suits common 2848 motor cans; check physical clearance for your specific motor can and chosen pinion before finalising mesh.
