Arrowmax am-174053 Compact 4D Set-Up System for 1/10 Off-Road  [am-174053]

Chassis and Suspension Setup Guide

The Arrowmax am-174053 4D Set-Up System is a compact alignment and setup aid for 1/10 scale off-road RC cars, intended to streamline chassis and suspension checks. The 4D measurement concept helps you quickly assess left/right balance and front/rear relationships without special vehicle fixtures.

This tool provides a consistent datum for common tuning jobs such as checking camber, adjusting toe, comparing ride heights and making preliminary roll-center observations. Use it to capture baseline readings before and after swapping shocks, springs or anti-roll bars to ensure repeatable settings.

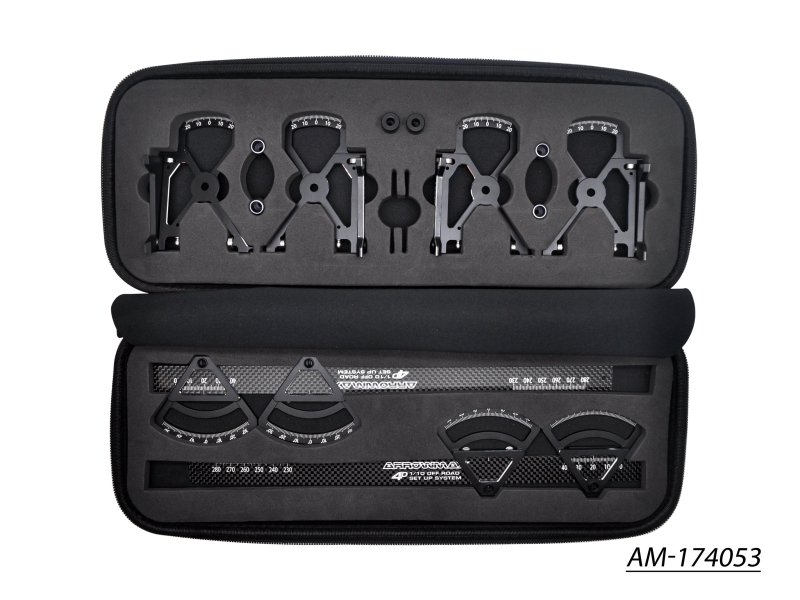

Using the system is straightforward and non-invasive: rest the vehicle on a flat surface, position the unit under the chassis or next to wheel hubs as appropriate, then read the measurement faces to identify differences. The included soft bag protects the components and keeps everything tidy during transport.

Provided as an accessory for RC setup tasks, this set complements model-specific fixtures and supports iterative tuning and track-side verification for 1/10 off-road models.
