BD7/BD5 Rear-Side Front Suspension Mount, Blue Anodized Aluminium - BD-301RR by Yokomo  [BD-301RR]

Rear mount for adjusting the rear suspension arm pins on BD7/BD5

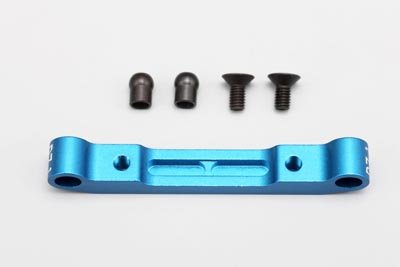

A blue anodized aluminium front suspension mount used at the rear side of the suspension assembly on Yokomo BD-series touring car chassis. This aftermarket part repositions the rear suspension arm pins and provides a serviceable mounting point for tuning rear geometry.

The left and right suspension arm pin pitch is 47.1mm when this mount is installed. With the standard front suspension mount fitted in the forward position the resulting rear suspension arm pin angle measures roughly 3.5 degrees. The item is supplied as a direct replacement to retain stock geometry or to be exchanged with other pitch mounts to change pin angle for handling variation.

Fitting is mechanical and uses the same mounting locations as the BD-series arm mounts. Be aware that altering pin pitch modifies roll centre and rear toe, so proceed in small steps and test to confirm handling effects.

Compatibility

• Yokomo BD7
• Yokomo BD5
