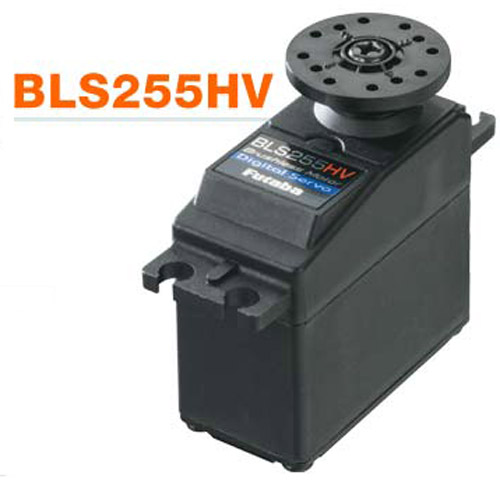

Futaba BLS255HV Precision CCPM Servo [BLS255HV]

Futaba BLS255HV High Voltage High Speed Servo

Price:

£109.18

Brand:

Futaba

Model:

BLS255HV

Not Available

Please kindly input your name and email address, we will inform you once we have the restocking.

Or you may find similar product under the

R/C Models - System - Servo - Standard Servos

Futaba BLS255HV Precision Control for Helicopters

The Futaba BLS255HV is a high-voltage digital servo that delivers precise, repeatable swash plate movement for flybarless CCPM helicopters. It is compatible with 6.0 - 7.4V supplies, allowing use with standard 2S LiPo arrangements.

Core Performance Features

High Torque and Speed: The BLS255HV is specified at 0.10 sec/60° at 6.0V and 0.08 sec/60° at 7.4V, suitable for responsive control throws.
Durability: Constructed with metal gears and dual bearings to keep operation smooth and reduce wear.
Versatile Power Supply: Operates on 6.0 - 7.4V DC, matching typical 2S LiPo setups found in many heli builds.

Fitting and Compatibility

Installation involves connecting the servo to your receiver and fine-tuning the linkages to match your swash configuration. The kit supplies several horn sizes and mounting fixings to aid a neat installation.

Specifications

Speed: 0.10 sec/60° at 6.0V, 0.08 sec/60° at 7.4V
Torque: 147.2 oz/in (10.6 kg/cm) at 6.0V, 166.7 oz/in (12.0 kg/cm) at 7.4V
Size: 1.57 x 0.79 x 1.45" (40 x 20 x 36.8mm)
Weight: 2.12oz (60g)
Power Supply: 6.0 - 7.4V DC

The Futaba BLS255HV is a compact, reliable choice for pilots seeking accurate swash response and robust gearing for regular use.

Does the servo fit common 450 class mounts?

The dimensions are compact and compatible with many 450-class helicopter mounts; check the specifications section for exact size details to confirm fitment.

What routine maintenance keeps the servo reliable?

Inspect linkages and mounting screws regularly, avoid water exposure, and replace horns if damaged. The metal gears and bearings minimise service needs but do benefit from periodic checks.
