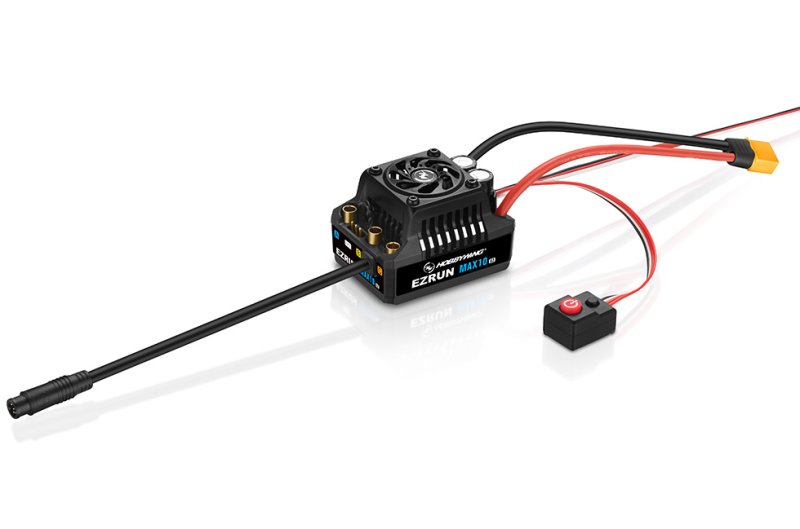

Performance and Protection from the Hobbywing MAX10 ESC
The Hobbywing MAX10 ESC brings dependable performance to 1/10 off-road cars, pairing protective electronics with accessible features for club racers and hobbyists alike. It is engineered to keep power delivery steady while reducing the risk of component failure.
Active Motor Temperature Management
When used with Hobbywing EzRun 3652/3660 G2 motors, the MAX10's motor sensor monitors temperature in real time to prevent overheating and protect both motor and ESC during sustained high-load runs.
Capacitor Safeguards and Solid Build Quality
Capacitor thermal protection helps avoid dielectric failure under overload, and the ESC's quality parts and firmware tuning are aimed at extending operational life for frequent racers.
Super Internal BEC for Servo Compatibility
The built-in switch-mode BEC supplies up to 6A and offers selectable 6V or 7.4V output, enabling use with a variety of servos to optimise steering performance without extra hardware.
Sealed Design for Wet and Muddy Conditions
With a waterproof, dustproof casing, the MAX10 is prepared for wet days and muddy circuits. The robust electronic switch is rated for more than 50,000 cycles for long-term reliability.
Updateable Firmware for Ongoing Improvements
Hobbywing provides free firmware updates through WiFi/USB LINK, allowing straightforward upgrades from a laptop or smartphone so your ESC benefits from ongoing software refinements.
Specifications
- Scale: 1/10
- Current: 80A Continuous / 520A Peak
- Input Voltage: 2-3S LiPo / 6-9 Cells NiMH
- BEC Output: 6V/7.4V, 5A
- Waterproof: Yes
- Connections: XT60 Input, 4.0mm Gold Output
- Size: 53mm x 39.5mm x 37.2mm
- Weight: 120g (with wires)
For racers who need weatherproof protection and intelligent thermal control in a compact package, the Hobbywing MAX10 ESC is a solid option for 1/10 scale off-road use.
