Tall Reliability & Durability
Built many loaded in rugged and top-quality elements and alongside
cutting-edge firmware, the EZRUN MAX6 can deliver unmatched energy
and satisfaction perhaps the numerous hardcore of rushing applications, it's also
responsive adequate to shield it self from harm considering overloading as a result of real
punishment, overuse and/or peoples mistake.
Great Flexibility & Versatility
With amazing acceleration abilities and a rock-solid, stable
manufacturing, the MAX6 are made for instant full-torque start-ups for
wheelies, high-speed rushing on straightaways and powering
through bumpiest surface. Some one might have your decision of
adjusting the ESC parameters in accordance with their choice and ability.

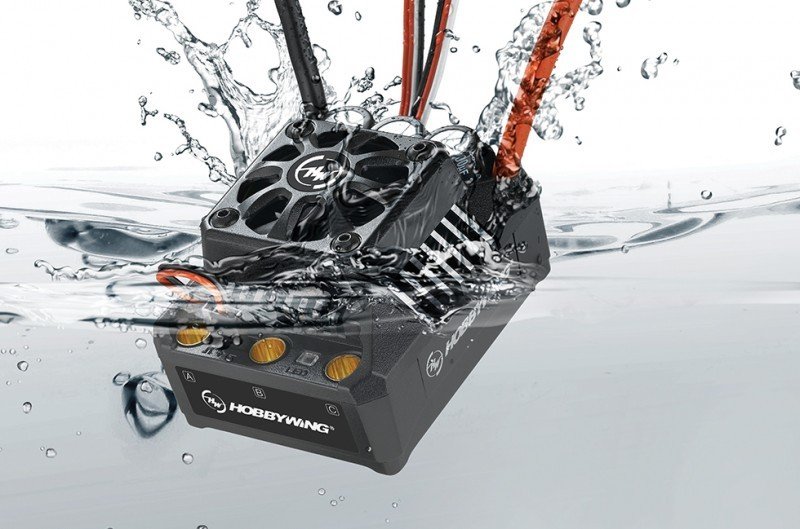

Strongly related All Weather Conditions
The waterproof and dust-proof design enables the MAX6 become found in many climate
conditions without problem of damage caused on ESC from water or dirt.
High Voltage integrated BEC
The MAX6 has used the world’s very first HV integral BEC with a manufacturing present entirely to 25Amp and a switchable manufacturing voltage of
6V-7.4V. The high voltage BEC is designed to handle today’s high
voltage servos on need utilized by major vehicles.
Advanced and Secure
Electronic Switch
The MAX6 features an electric digital switch with a lifespan of over
50000 on/off rounds, housed in an entirely waterproof,
dust-proof and shock-resistant design.
Regular Firmware Updates
with no Charge
You can upgrade the MAX6 utilizing the Hobbywing USB
LINK pc software, a multifunction LCD system field and a laptop computer.
Hobbywing updates its ESC firmware often giving you
upgraded features more often whenever available.
Incorporated Anti-Spark System
The MAX6 is created with interior anti-spark circuitry that protects not only electric batteries connectors
from harm but aids in preventing genuine harm as a result of burnt fingers from unavoidable
issue of sparking whenever setting up the ESC to raised voltage battery packages (5S/6S/7S/8S).
Level of Applications
MAX6 Applications:
This ESC is relevant to various 1/6th & 1/7th scale automobiles like the Traxxas XO-1, as well as
suitable to different 1/8th scale hefty vehicles such as the CEN GST-E. It's your very best selection for
high-end aggressively driven builds.
Product Specification
Type
- Scale : 1/6th、1/7th
- Brushed/Brushless : BL
- Sensored/Sensorless : SL
- Waterproof : WP
Specifications
- Cont./Peak Present : 160A/1050A
- Input : 3-8S LiPo/9-24 Cells NiMH
- BEC production : change Mode:6V/7.4V,6A
Wires & Connectors
- Input Wires : Red-10AWG-200mm*1/Black-10AWG-200mm*1
- Output Wires : Black-10AWG-200mm*3
- Input Connectors : No
- Output Connecotors : 6.5mm Famale silver Connectors (pre-soldered about the PCB)
Fan
- Size : 35.0x35.0x10.0mm
- Voltage Quantity : 5-7.4V
- Powered by : Powered by BEC
ESC Programing via
- SET Button on ESC : Supported
- LED Program Box : Supported
- LCD Program Box : Supported
- WiFi Module : Supported
- Program Port : FAN/Program Port
Firmware
- Firmware Upgrade : Supported
Size & Weight
- Size : 70.0x56.0x46.5mm
- Weight : 240g
Applications
- Motors : SL BL Motors/SD BL Motors(just in SL mode)
- Vehicles : 1/6th、1/7th Touring Car/Buggy/Truck
- KV Rating/T Count : 6S LiPo: KV≤1500/8S LiPo: KV≤1200(5892 Size Motors)
