F91AC Piston Wrist Pin YSF9129 for YS Engine  [YSF9129]

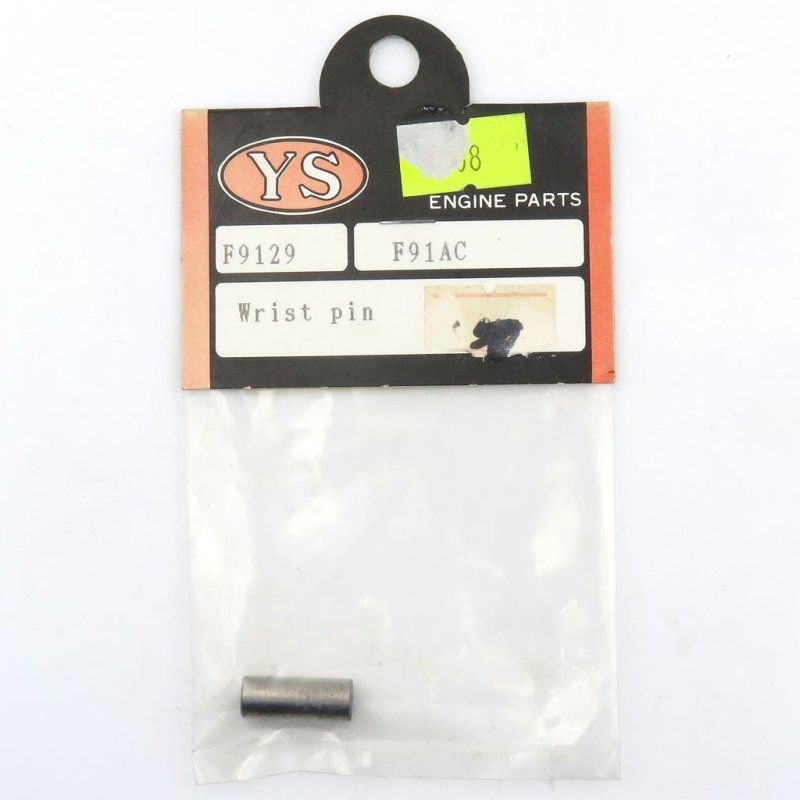

YS ENGINE PISTON WRIST PIN F91AC #F9129
Price:
£4.77
Brand:
YS Engine
Model:
YSF9129
Condition:
Brand New
Write a review

Piston wrist pin: service and function

Designed for the YS F91AC piston assembly, this wrist pin provides the pivotal connection between piston and connecting rod in small nitro engine cylinders. It is supplied as a single unit to replace worn or damaged pins and restore correct piston articulation.

The wrist pin condition directly influences piston alignment and ring sealing behavior. Inspect the pin bore and piston skirt for scoring, deformation, or excessive clearance during maintenance, and fit a new pin if faults are detected to maintain consistent combustion and engine performance.

Replacement requires removal of the engine top end to access the piston and rod. During reassembly ensure clips are correctly seated and mating surfaces are clean, then perform a cautious run-in to verify the assembly operates smoothly.

How do I diagnose a wrist pin failure versus piston damage?

Check for play between piston and pin, and inspect for discrete scoring on the pin or piston bore. If the pin is loose but the piston appears intact, replacing the pin first is sensible; heavy piston damage may require a piston replacement as well.

Are there material or finish differences to consider?

Wrist pins can vary by hardness and finish. Choose a replacement that matches the original specification for hardness and surface finish to avoid accelerated wear of mating components.

Where should I check for secondary wear after a pin fails?

Inspect the piston bore, connecting rod small end, and cylinder walls for scoring or wear that may have resulted from a failed pin; address any damaged parts to prevent repeat failures.
