Hobbywing 80020650 - FlyFun 100A V4 ESC for Aircraft - Compact 100A ESC  [HW-80020650]

HOBBYWING FlyFun 100A V4 - 80020650
Price:
£0.00
Brand:
Hobbywing
Model:
HW-80020650
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
category
Write a review

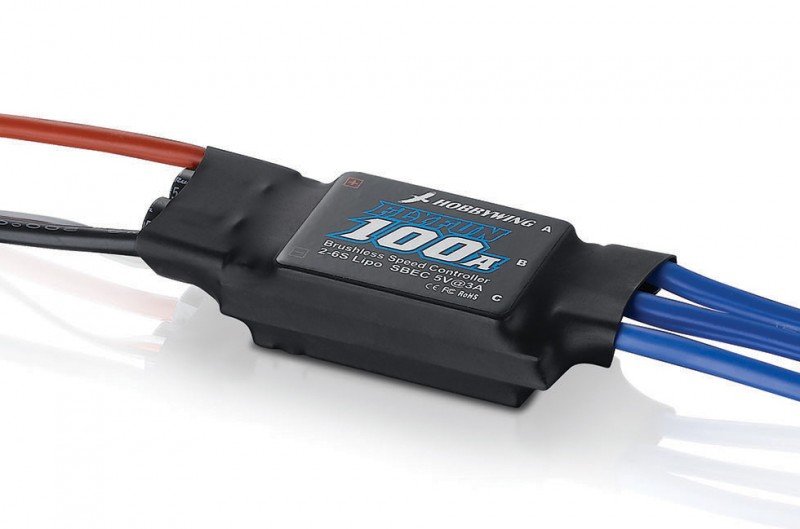

Compact Performance from the Hobbywing FlyFun 100A V4 ESC

The Hobbywing FlyFun 100A V4 ESC packs dependable current handling into a compact package for RC enthusiasts. Built with quality parts and a low impedance board, it maintains stable performance across a range of aircraft including sport planes, helicopters and multirotors.

Easy-to-Set Parameters for Flight Tuning

Parameter adjustments are available via an optional LED program card or through transmitter programming methods for pilots who prefer to tune without specialised boxes. The ESC does not support programming through an LCD box or WiFi accessory.

Protection Features to Preserve Equipment

This ESC offers safeguards against abnormal input voltages, overheating, throttle signal failure and low voltage conditions to help protect motors and batteries during operation.

Specifications

  • Type: Brushless
  • Voltage: 2-6S LiPo
  • Continuous/Peak Current: 100A/120A
  • BEC Output: Linear mode: 5V, 3A
  • Output Wires: Blue-12AWG-100mm x 3
  • Output Connectors: 4.0 Gold Connectors (Female)
  • Size: 83.0x31.0x16.0mm
  • Weight: 76g

Suited to model flyers who want a configurable, well protected ESC that is compact yet capable of sustained current loads.

Yes, its 100A continuous rating and robust design make it suitable for sport and some scale aircraft when paired with appropriate motors and props.
Use the optional LED program card or transmitter-based programming; the ESC does not accept LCD programmer boxes or WiFi modules.
The ESC includes low voltage cutoff and other protections to help prevent battery over discharge, but always monitor battery condition and match capacity to your setup.
The linear BEC delivers 5V at up to 3A which is adequate for most standard servo arrangements; heavy servo loads may need a dedicated supply.
