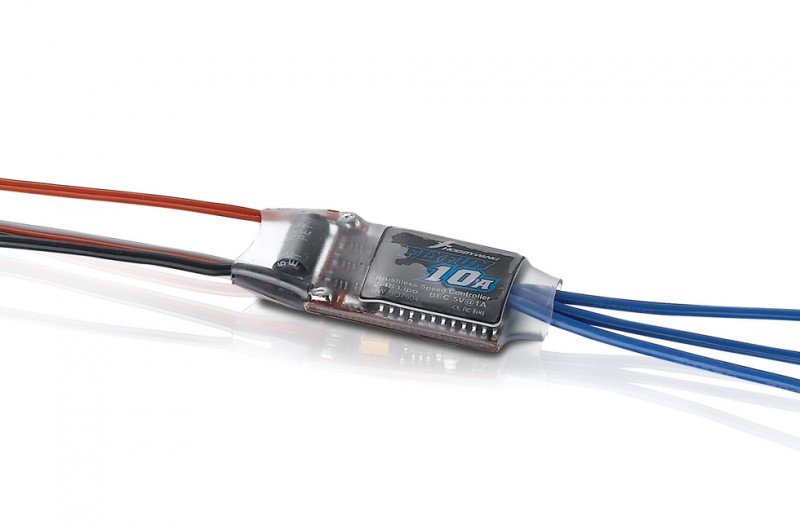

Hobbywing 80020580 - FlyFun 10A V4 ESC 2-4S LiPo Aircraft ESC  [HW-80020580]

HOBBYWING FlyFun 10A V4 - 80020580
Price:
£0.00
Brand:
Hobbywing
Model:
HW-80020580
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
category
Write a review

Compact 10A ESC for Model Aircraft

The Hobbywing FlyFun 10A V4 ESC is aimed at small model aircraft where space and weight matter. Its construction uses imported parts and a PCB with low impedance to provide reliable current delivery and solid durability in light-duty applications.

Program and Tune with Ease

You can tailor the FlyFun 10A V4 with a range of programmable options using the LED program card or your transmitter, making it straightforward to match throttle response and protection settings to different airframes.

Multiple Protections to Safeguard Electronics

The ESC includes protection against abnormal input voltage, thermal issues within the ESC, throttle signal loss (Fail Safe) and a low voltage cutoff to guard batteries and extend component life.

Specifications

  • Type: Brushless (BL)
  • Voltage: Regular
  • Continuous/Peak Current: 10A/12A
  • Input: 2-4S LiPo
  • BEC Output: Linear mode: 5V, 1A
  • Output Wires: Blue-20AWG-100mm*3
  • Input Connectors: No
  • Output Connectors: No
  • ESC Programming via Transmitter: Supported
  • LED Program Card: Supported
  • LED Program Box: Not Supported
  • LCD Program Box: Not Supported
  • WiFi Module: Not Supported
  • Program Port: Program/Throttle Wire
  • Firmware Upgrade: Not Supported
  • Size: 38.0x18.0x6.0mm
  • Weight: 10g
The FlyFun 10A V4 is rated for 2-4S LiPo packs; choose cells that keep your motor current draw within the ESC's continuous rating to avoid overheating or tripping protections.
No, a program box is not required. Use the LED program card or configure settings via a compatible transmitter; program boxes and LCD boxes are not supported.
With dimensions of 38.0x18.0x6.0mm and a 10g weight, it suits many micro installations, but check mounting space and motor lead routing before finalising the installation.
