Purpose of the GF30 crankcase

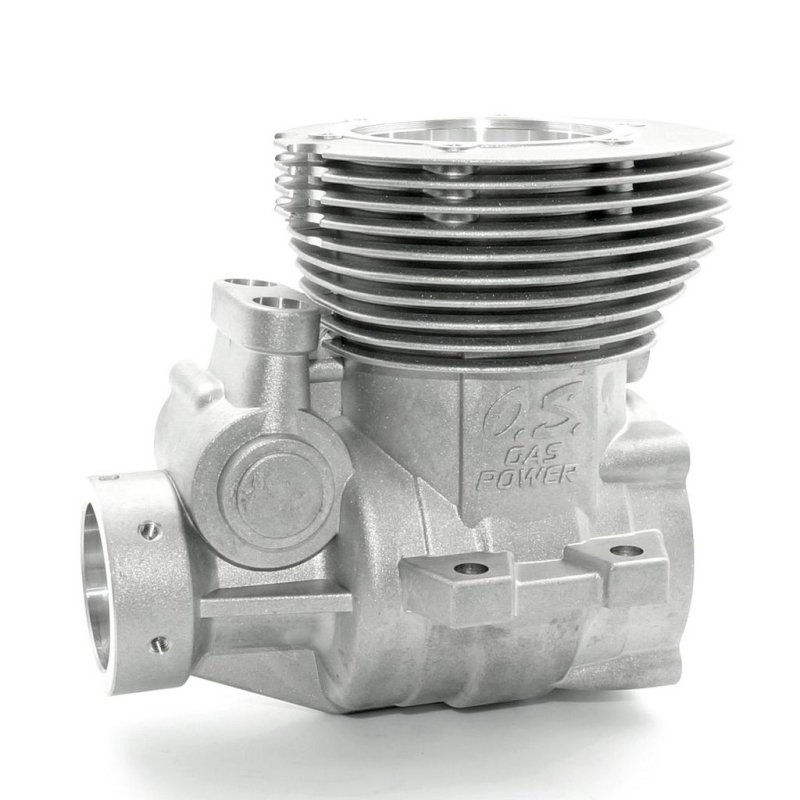

This part is the replacement crankcase listed as O.S. Engine OS4A001000 and intended for GF30-designated RC engine assemblies. The section below describes the component's role, key pre-fit checks, installation pointers, and tuning considerations without referencing a specific engine model.
What it does: the crankcase secures the crankshaft and supports internal components during rotation, forming the main structural enclosure of an RC engine. When carrying out a rebuild, inspect bearing seats, mating faces, and sealing surfaces on the removed crankcase before installing the new assembly.
Pre-install checks: ensure the engine's model code or handbook lists OS4A001000, examine bearings and seals for wear or damage, and prepare any gaskets or adhesives your engine requires. If bearings are to be reused, make sure they are serviceable and correctly oriented.
Installation notes: follow the manufacturer's disassembly sequence, transfer bearings and locating pins in their original order, align sealing faces carefully, and tighten fasteners progressively to achieve uniform clamping. Do not substitute assumed torque settings; consult the service manual for specified values.
Service and tuning impact: fitting a new crankcase can affect clearances and alignment, so after assembly check for free crank rotation, proper sealing at intake and exhaust ports, and any variation in idle. Adjust carburettor or needle settings only after confirming mechanical soundness.
Specifications
- Item: Crankcase
- Model Number: OS4A001000
This O.S. Engine OS4A001000 crankcase is supplied as a service replacement for GF30-designated RC engines and is intended for careful fitting by experienced hobbyists.
