AXIAL SCX10 62pc Aluminium Chassis Lift 77-87mm SCXH87 by GPM  [SCXH87]

SCX10 aluminium chassis lift for tougher terrain

This 62-piece aluminium lift combo is built for AXIAL Racing SCX10 platforms and raises chassis clearance from 77mm to 87mm to enhance crawling on technical rock and boulder courses. The set combines aluminium collars with stainless fasteners and consumables to produce a largely plug-and-play upgrade focused on correct geometry and measured link lengths rather than appearance changes.

Primary design notes preserved from the source:

• Clearance gain: 77mm to 87mm, adding 10mm of lift to the chassis.
• Main shaft change: stock CVD head swapped for a universal swing shaft cross head to permit larger steering angles and improved articulation.
• Damping and link adjustability: several damper plate positions allow static ride height and axle attitude tuning.
• Measured midpoint link lengths: front upper 130mm, front lower 130mm, rear lower 140mm to match supplied pieces and limit trimming.
• Provided shaft length ranges: long 125mm-140mm and short 130mm-145mm.

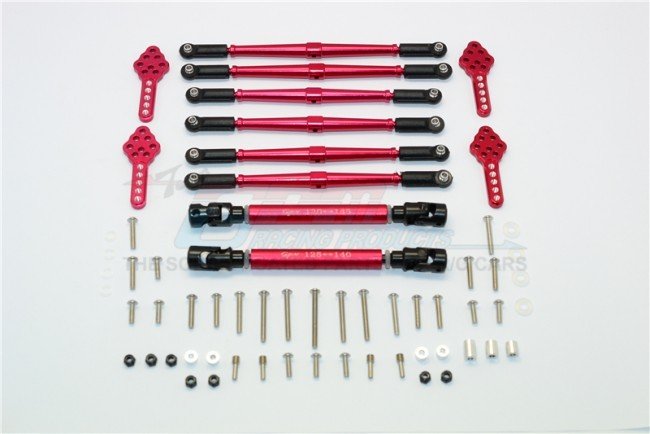

The included hardware is presented as a 62-piece set with stainless steel button head screws, aluminium collars, O-rings, screw shafts and T-lock nuts for immediate assembly. Tie rods were measured to reduce the risk of binding while crawling; confirm pre-measured lengths and recentre steering after the final torque.

The SCXH87 lift combo is a practical chassis-height and steering-geometry accessory for AXIAL SCX10 scale crawlers, intended for hobbyists tuning clearance and articulation on technical trails.
