GPM SCX1660TS Performance Belt Drive for AXIAL SCX10 III Jeep JT Gladiator  [SCX1660TS]

Refine AXIAL SCX10 III Drivetrain with a Belt System

Upgrade an AXIAL SCX10 III Jeep JT Gladiator with the GPM SCX1660TS gearbox belt drive, made from 6061-T6 aluminium and rubber parts. The assembly boosts structural integrity and shock tolerance while cutting down on gearbox noise for a more refined driving feel.

Advantages and Power Considerations

The GPM SCX1660TS belt arrangement reduces gearbox noise and lessens shaft impact compared with metal gears. Bear in mind that belt systems often transfer less peak power than straight gear drives. Confirm motor shaft size before fitting; the accepted diameter is 3.175mm.

Assembly and Tension Adjustment

First, place the original metal plate into its gearbox location. Select and fit the correct friction disc into the pulley groove, then install the bearing to centre. Reinstall the metal plate, anti-skid spring and nut in sequence. Bring the gears together, route the belt over them and then adjust the spacing to obtain consistent belt tension.

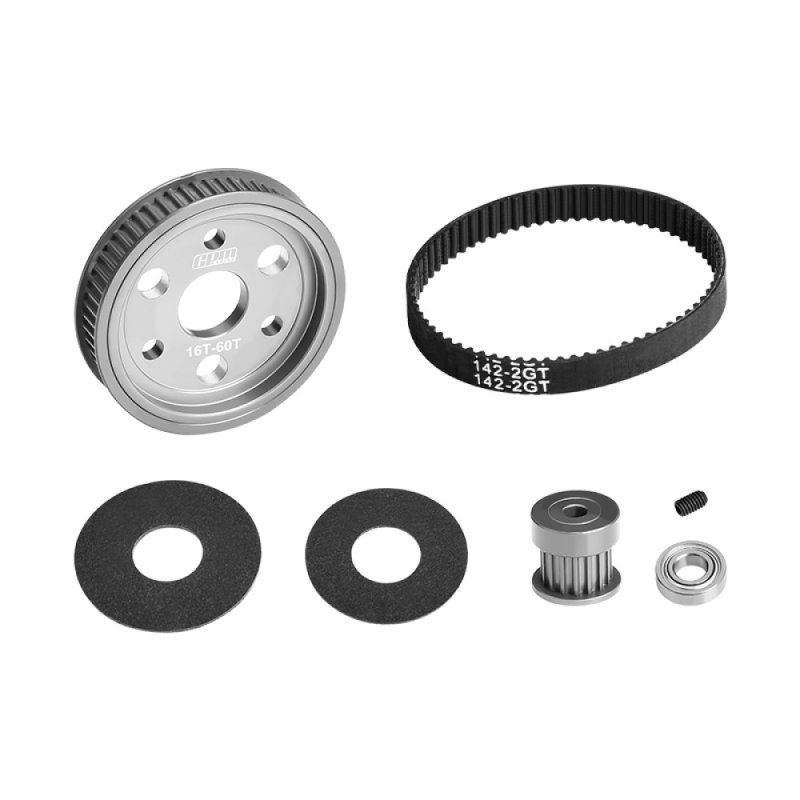

Packing includes

• Spur Gear 60T - 1pc
• Pinion Gear 16T - 1pc
• Belt 142mm - 1pc
• Friction disc 12x32x0.8 - 1pc
• Friction disc 12x28x0.8 - 1pc
• Bearing 5x11x3 - 1pc
• Set Screws 3x5 - 1pc
