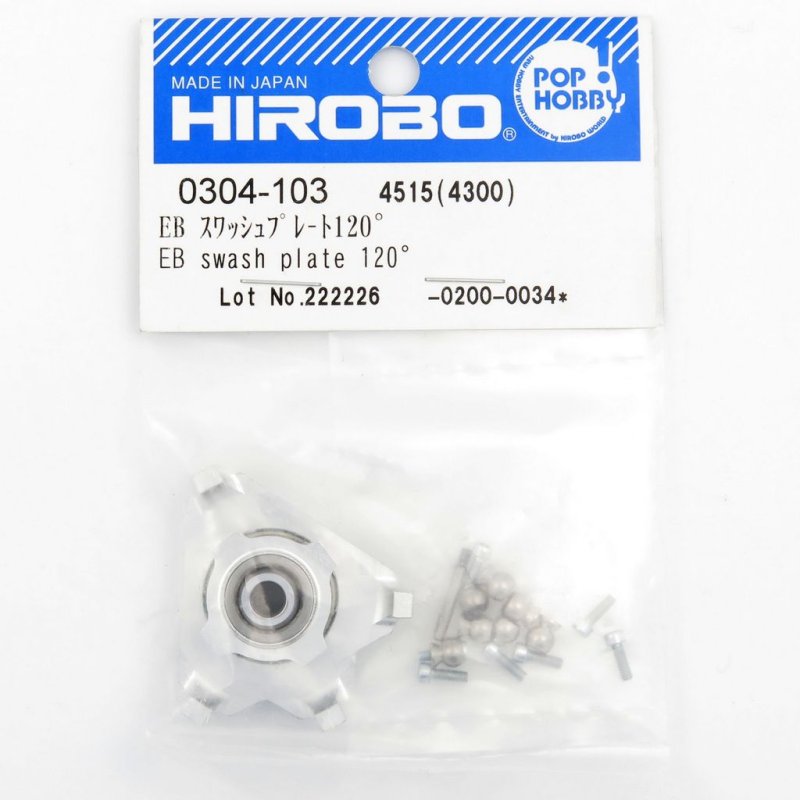

Hirobo HI0304103 120 Degree Swash Plate for Embla EB  [HI0304103]

Swash plate specifics for Embla EB helicopters

This swash plate is an RC replacement part specified for Embla EB model helicopters, configured with a 120 degree control geometry that modifies collective and cyclic linkage action. It is presented as a direct-fit option for Embla EB applications. The content below details fit guidance, installation tips, and how the plate influences tuning decisions.

The swash plate's function is to transmit inputs from several servos to the rotor head to control blade pitch for roll and pitch responses. Choosing a 120 degree plate alters the mechanical relationship between servo throws and blade pitch relative to other geometries, so expect to update travel maps and mixing profiles in your control system or linkages.

Installation summary: verify ball link positions and servo arm geometry to prevent binding, centre all servos and set the swash to neutral before tightening linkages, and confirm unobstructed rotation throughout the collective travel. Save current trims and end-point settings prior to replacement to ease re-adjustment.

As an exact-replacement style rotor head component labelled for Embla EB use, this swash plate aims to restore or refine cyclic and collective responses during maintenance; careful neutral alignment and correct servo geometry will preserve expected handling.
