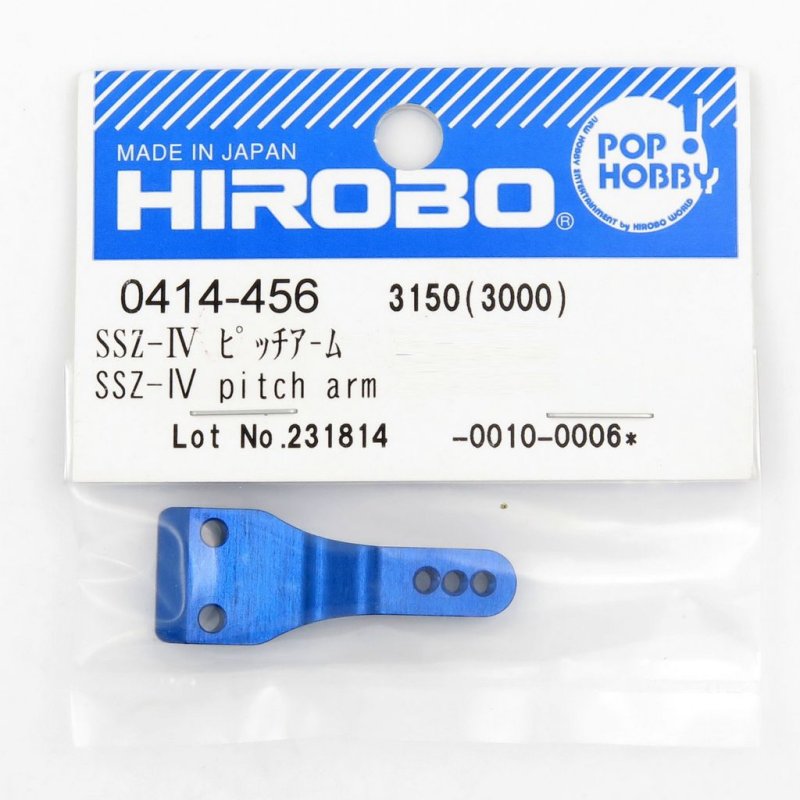

Hirobo HI0414456 SSZ-IV Replacement Pitch Arm - Linkage Component  [HI0414456]

Understanding the SSZ-IV Pitch Arm

This Hirobo SSZ-IV pitch arm (model HI0414456) is supplied as a replacement component for SSZ-IV pitch assemblies on compatible Hirobo helicopters. The passage below outlines the part's functional purpose, recommended fitment checks, and its influence on setup and tuning without asserting wider compatibility beyond SSZ-IV.

Functional summary: the pitch arm links the swashplate and servo outputs to the rotor head, converting control inputs into blade pitch movement. Inspect for straightness, correctly torqued fasteners, and any play at the linkage joints that could degrade control precision.

Installation guidance: position the arm within the SSZ-IV pitch assembly following the manufacturer's service layout, secure fixings to the advised torque, and confirm correct linkage geometry before any flight testing. Re-check swashplate centre and servo neutral settings after installation.

Tuning note: because the arm is a structural element of the control chain, it helps maintain tuning consistency by preserving alignment and reducing unwanted movement. Ensure joints are free and seated so tuning adjustments reflect true system changes.

Fit this HI0414456 unit as a service spare for SSZ-IV pitch assemblies and periodically check linkage interfaces to sustain predictable handling.
