HUDY 293120 Side-Mount 25mm Aluminium Fan for 1/12 Scale Vehicles  [HSP-293120]

HUDY 293120 - Aluminium RC FAN 25mm-Side Mount 2 Hole
Price:
£32.47
Brand:
HUDY
Model:
HSP-293120
Condition:
Brand New
Write a review
alt="HUDY 293120 - Aluminium RC FAN 25mm-Side Mount 2 Hole" title="HUDY 293120 - Aluminium RC FAN 25mm-Side Mount 2 Hole"

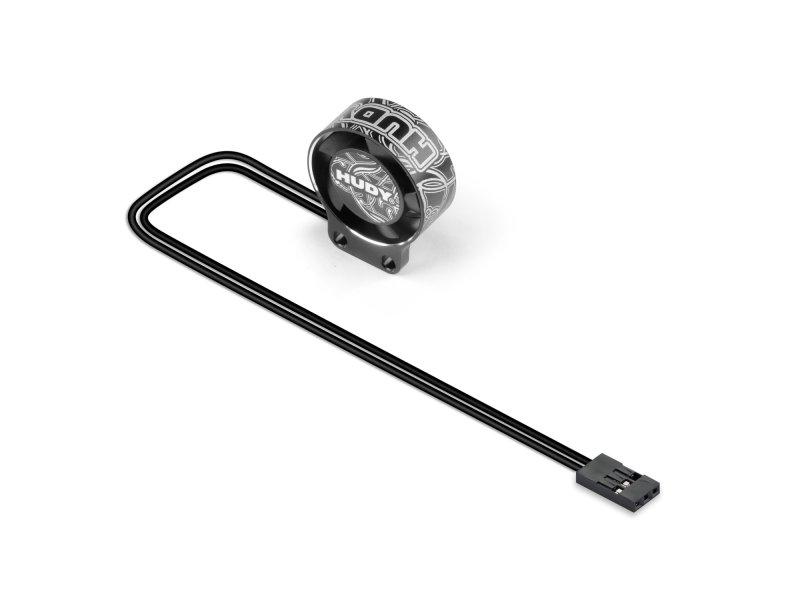

Aluminium 25mm Side-Mount Cooling Fan

Specifically made for compact 1/12 scale vehicle installations, this aluminium fan supplies focused airflow where room is at a premium. The side-mount two-hole configuration makes it simple to tuck the fan beside ESCs, motors, or battery compartments without blocking moving parts.

The unit uses a CNC-machined aluminium housing and a brushless bearing motor for stable, long-life performance while keeping mass low. Dimensions are 30x25x10mm and the surface is finished with laser-engraved HUDY branding.

Electrical connections include a 265mm cable with a BEC connector plus internal soldering tabs for permanent wiring. Both conductors are black-insulated and the positive lead is marked with white stripes. There is no polarity protection, so always verify the wiring before soldering or powering the fan to avoid damage.

Mount the fan using the side-mount 2-hole pattern to mate with chassis points or a narrow bracket, ensure blades clear any suspension movement, and route the cable to avoid contact with moving components. Always bench-check the electrical setup ahead of final fitting.

Specifications

  • Item Aluminium 25mm side-mount cooling fan
  • Material CNC-machined aluminum housing
  • Model Number HUDY 293120
  • Size 30x25x10mm
  • Mounting Side-mount, 2-hole
  • Cable length 265mm
  • Connector BEC connector
  • Motor Type Brushless
  • Bearing Bearing-equipped
  • Compatibility Primarily 1/12 scale RC cars
  • Notes Positive wire marked with white stripes, no polarity protection

An efficient, small-footprint aluminium cooling solution for 1/12 scale projects where precise airflow and minimal intrusion are needed.
Remark :
Due to limited stock availability, please notice that some HUDY items may have to order from the factory and the ready time is around 8-12 weeks. Customer purchases the item is assumed to accept the waiting time which allows us to order directly from the manufacturer if the item is out of our warehouse.

What are the primary use cases for this fan?

The fan is best used to cool ESCs, motors, or battery areas in tight 1/12 scale chassis where a small side-mounted blower will fit without interfering with moving parts.

Which wire is positive and how certain should I be?

The positive wire is identified by white stripes beneath the black insulation. Confirm polarity before making permanent connections because the fan has no reverse-connection protection.

Does the fan include any protection circuits?

No protective circuitry is included. Take care to wire the fan correctly; prolonged reverse connection can damage the brushless motor.

How to avoid mechanical interference after fitting?

Secure the fan using the two side-mount holes and a slim bracket if required, ensure the blades are clear of linkages, and fasten the cable along chassis rails to keep it away from moving components.
