Kyosho 32660W MINI-Z AWD Kit for MA-020 NISSAN SILEIGHTY  [KY-32660W]

Kyosho 32660W - MINI-Z AWD NISSAN SILEIGHTY White
Price:
£188.60
Brand:
Kyosho
Model:
KY-32660W
GTIN:
4548565519156
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
category
Write a review
alt="Kyosho 32660W - MINI-Z AWD NISSAN SILEIGHTY White" title="Kyosho 32660W - MINI-Z AWD NISSAN SILEIGHTY White"
alt="Kyosho 32660W - MINI-Z AWD NISSAN SILEIGHTY White" title="Kyosho 32660W - MINI-Z AWD NISSAN SILEIGHTY White"

Overview: Kyosho 32660W SILEIGHTY on the MA-020 MINI-Z AWD platform

Chassis description and mechanical details

The kit is based on the MA-020 family chassis reworked for MINI-Z AWD installation. Its configuration prioritises a compact mechanical layout and a complete running assembly suitable for low-impact driving and display. Use of ball bearings, matched gear sizing and an integrated radio unit keep the mechanical foundations in line with other MINI-Z products, while access for routine servicing is retained.

Bodywork and visual approach

Supplied is a painted and marked body shell that recreates the SILEIGHTY outline at Mini-Z scale. The shell focuses on correct scale proportions and printed detail to deliver a finished look from the factory, with the white livery chosen to emphasise panel lines and decal placement.

Intended use and buyer profile

The 32660W is targeted at enthusiasts who want a near-complete Mini-Z that looks ready to display while preserving authentic MA-020 chassis components. It is presented as an appearance-focused option rather than a top-tier competition platform.

Package notes and power needs

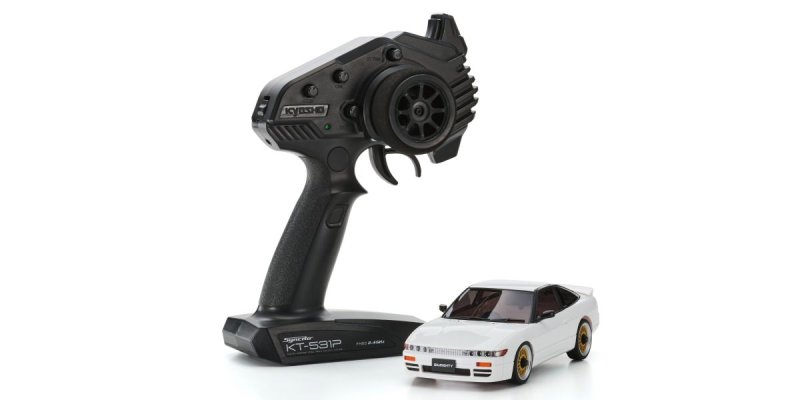

The set pairs a compact drivetrain arrangement with a Syncro KT-531P transmitter and a painted body shell. An assortment of pinion and spur gears is included to enable basic gearing adjustments. Both the chassis and transmitter require user-supplied AAA batteries as listed below.

Specifications

  • Label: Kyosho 32660W MINI-Z AWD NISSAN SILEIGHTY
  • Chassis: MA-020-N
  • Length: 164.0 mm
  • Width: 67.0 mm
  • Height: 49.5 mm
  • Wheelbase: 90.0 mm (M)
  • Tread Front / Rear: 56.5 mm / 56.5 mm
  • Front Wheel Offset: Narrow +-0.0 mm
  • Rear Wheel Offset: Narrow +-0.0 mm
  • Weight: 176.0 g
  • R/C System: Syncro KT-531P
  • Electronic Speed Control (ESC): Not Included
  • Kit contents highlight: complete chassis with built-in R/C unit, painted and marked body, Syncro KT-531P transmitter, assortment of pinion and spur gears, wheel wrench, pinion removal tool
  • Power requirements: AAA-size alkaline batteries x 4 or Ni-MH batteries x 4 for chassis; AAA-size alkaline batteries x 4 for transmitter

The Kyosho 32660W MINI-Z AWD NISSAN SILEIGHTY merges MA-020 chassis hardware with a painted body to create a compact, ready-to-display Mini-Z that emphasises visual fidelity and ease of use.

The kit is assembled on the MA-020-N chassis variant adapted for MINI-Z AWD use as supplied in this product configuration.
Alternative wheels and tyres that match the Mini-Z narrow offset and wheel dimensions can be fitted, but verify clearance and offset to maintain proper handling and fitment.
Yes, the Syncro KT-531P transmitter is included and paired with the built-in receiver; once batteries are installed the car is ready to operate.
The chassis requires four AAA-size alkaline or Ni-MH cells, while the transmitter requires four AAA-size alkaline batteries; these are not supplied with the kit.
Yes, the kit contains an assortment of pinion and spur gears so you can try simple gearing changes within the Mini-Z platform.
