MG217T/0.5M 40Cr 17T Aftermarket Motor Pinion (0.5M) by GPM  [MG217T/0.5M]

40Cr Steel Motor Gear 17T ( Module:0.5mm, Motor Tooth Diameter:2.2mm) - GPM MG217T/0.5M
Price:
£5.87
Brand:
GPM
Model:
MG217T/0.5M
GTIN:
4894538411522
Condition:
Brand New
Write a review

Aftermarket 17T Motor Pinion (0.5 Module)

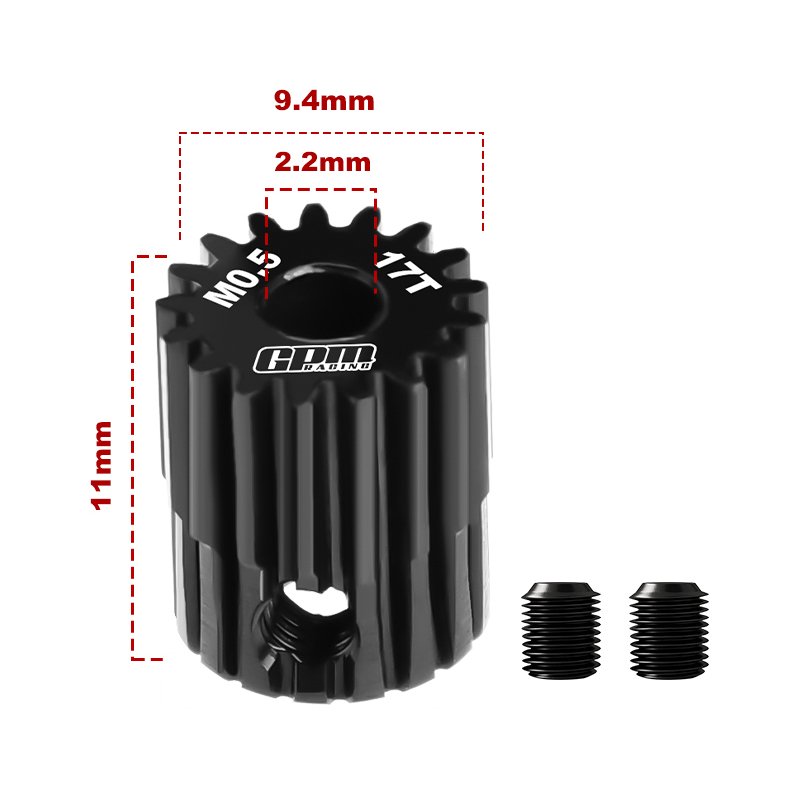

The MG217T/0.5M is an aftermarket motor pinion featuring 17 teeth, a 0.5mm module, and a 2.2mm bore. Machined from 40Cr steel and given a hardened black treatment, it offers improved wear resistance relative to standard pinions.

The component has a round motor hole and is secured using two 3x3 set screws for positive attachment to the motor shaft. Verify both the module and bore dimensions on your motor to ensure precise meshing with the spur gear.

Intended for maintenance or tuning, the MG217T/0.5M replaces worn pinions or changes gearing; the hardened finish prolongs service life but does not change tooth geometry, so check mesh and backlash during setup and after test runs.

How does this pinion affect drivetrain performance?

Changing to this 17T pinion alters the gear ratio and can increase acceleration or top speed depending on the spur combination; plan tuning and test runs to evaluate the effect.

Are there any checks after fitting?

After fitting, rotate the drivetrain to check for smooth mesh and correct backlash. Recheck set screw tightness and inspect for abnormal noise during a short run.

Is the hardened coating compatible with all spur materials?

The hardened pinion is compatible with common spur gear materials; it improves wear life on the pinion itself, but monitor mating spur condition and tooth wear during use.
