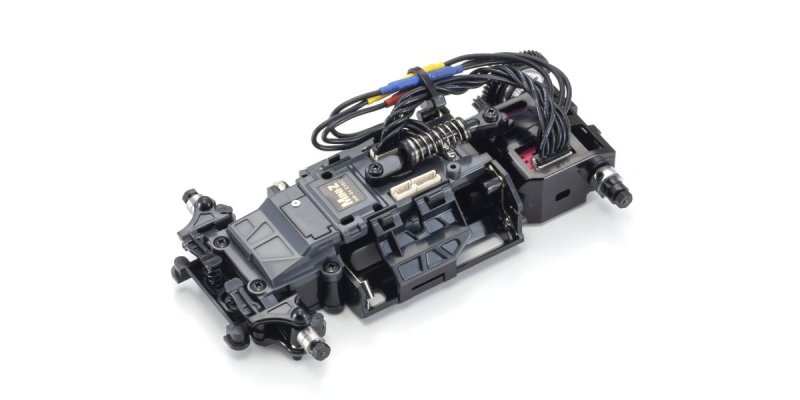

Kyosho 32893 - MINI-Z Racer MR-04EVO2 Chassis Set (W-MM/8500KV)
Price:
£0.00
Brand:
Kyosho
Model:
KY-32893
GTIN:
4548565518487
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
category
Write a review
alt="Kyosho 32893 - MINI-Z Racer MR-04EVO2 Chassis Set (W-MM/8500KV)" title="Kyosho 32893 - MINI-Z Racer MR-04EVO2 Chassis Set (W-MM/8500KV)"
alt="Kyosho 32893 - MINI-Z Racer MR-04EVO2 Chassis Set (W-MM/8500KV)" title="Kyosho 32893 - MINI-Z Racer MR-04EVO2 Chassis Set (W-MM/8500KV)"
alt="Kyosho 32893 - MINI-Z Racer MR-04EVO2 Chassis Set (W-MM/8500KV)" title="Kyosho 32893 - MINI-Z Racer MR-04EVO2 Chassis Set (W-MM/8500KV)"
alt="Kyosho 32893 - MINI-Z Racer MR-04EVO2 Chassis Set (W-MM/8500KV)" title="Kyosho 32893 - MINI-Z Racer MR-04EVO2 Chassis Set (W-MM/8500KV)"
alt="Kyosho 32893 - MINI-Z Racer MR-04EVO2 Chassis Set (W-MM/8500KV)" title="Kyosho 32893 - MINI-Z Racer MR-04EVO2 Chassis Set (W-MM/8500KV)"
alt="Kyosho 32893 - MINI-Z Racer MR-04EVO2 Chassis Set (W-MM/8500KV)" title="Kyosho 32893 - MINI-Z Racer MR-04EVO2 Chassis Set (W-MM/8500KV)"
alt="Kyosho 32893 - MINI-Z Racer MR-04EVO2 Chassis Set (W-MM/8500KV)" title="Kyosho 32893 - MINI-Z Racer MR-04EVO2 Chassis Set (W-MM/8500KV)"
alt="Kyosho 32893 - MINI-Z Racer MR-04EVO2 Chassis Set (W-MM/8500KV)" title="Kyosho 32893 - MINI-Z Racer MR-04EVO2 Chassis Set (W-MM/8500KV)"
alt="Kyosho 32893 - MINI-Z Racer MR-04EVO2 Chassis Set (W-MM/8500KV)" title="Kyosho 32893 - MINI-Z Racer MR-04EVO2 Chassis Set (W-MM/8500KV)"

MR-04EVO2: technical summary and intended use

This 1/27-scale chassis set is tailored for the Mini-Z MR-04EVO2 platform and is presented as a technical EVO2 upgrade option within Kyosho's Mini-Z competition range.

The MR-04EVO2 is a substantial update to the MR series released late in 2023, the first full model revision in 14 years while maintaining MR-03 design fundamentals. The platform adds a sensored brushless motor, refreshed front suspension geometry, a lower battery mounting position for a reduced center of gravity, and upgraded high-speed radio comms. These enhancements are designed to deliver finer steering response and improved stability for circuit-focused Mini-Z racing.

As a chassis set, the product emphasises component and electronic upgrades rather than body design. Principal hardware updates include the reinforced Front Suspension Arm 2.0, front knuckles with integrated kingpins for superior camber consistency, and seven 3 mm inner-diameter ball bearings to reduce rotational resistance. The battery location is lowered relative to earlier MR-03 variants to support cornering balance. A ball differential is included to manage slip versus traction in turns. Gyro and some radio elements are not supplied so users can pick compatible equipment that fits class rules and personal tuning aims. ESC and motor RPM settings are adjustable through the I.C.S. Setting Manager to meet Mini-Z Cup standards effective 2025.

Specifications

  • Length: 124.5 mm
  • Width: 72 - 76 mm
  • Height: 31 mm
  • Motor mount: MM
  • Wheelbase: 98.0 mm (LL)
  • Tread (F/R): 63.5 - 65.0 mm / 61.5 - 65.0 mm
  • Gear ratios: 7.3, 6.3, 5.5, 4.9:1
  • Weight: 135.5 g (chassis only; body, tires, wheels not included)
  • Motor included: KYOSHO SPEED HOUSE XSPEED 85 (KV8500)
  • Ball bearings: 3 mm inner diameter, seven units
  • Drivetrain detail: Ball differential included

The chassis set is offered as a focused upgrade within the Mini-Z line, prioritising suspension geometry, lowered battery placement, and minimized bearing drag to enhance lap consistency and setup options.

Will a gyro be included in the chassis pack?

No. A gyro is not included so competitors can select a gyro that best suits their steering preferences and complies with event class rules.

Which receiver features are needed for full EVO2 capability?

Receivers and transmitters that support EVO/EVO2 high-speed communication are necessary to exploit advanced features and reduce latency between input and response.

Does the kit contain tyres and a body shell?

No. Tyres, wheels, and body shells are not supplied with the chassis; these must be provided separately. The weight figure excludes those items.

Are multiple pinion choices and basic tools supplied in the box?

Yes. The package includes a selection of pinion gears plus a wheel wrench, spare wheel nuts, and tools needed for pinion maintenance.

What method is used to change the front tread on the MR-04EVO2?

Front tread adjustments are achieved by swapping the specified lower and upper front plates and altering the steering tie rod to set the desired narrow or wide track position.
