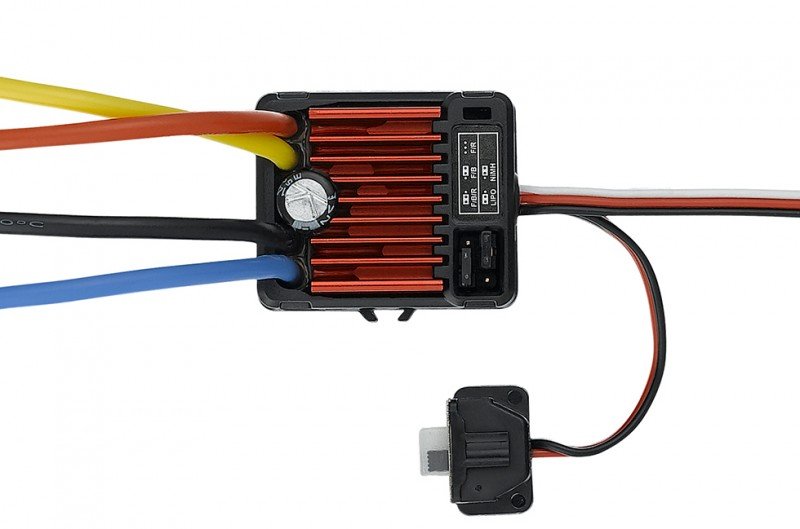

HOBBYWING QuicRun WP 1060 Brushed ESC - 30120201 Track Ready Brushed ESC  [HW-30120201]

HOBBYWING QuicRun WP 1060 Brushed - 30120201
Price:
£20.86
Brand:
Hobbywing
Model:
HW-30120201
GTIN:
6938994413084
Condition:
Brand New
Write a review
alt="HOBBYWING QuicRun WP 1060 Brushed - 30120201" title="HOBBYWING QuicRun WP 1060 Brushed - 30120201"
alt="HOBBYWING QuicRun WP 1060 Brushed - 30120201" title="HOBBYWING QuicRun WP 1060 Brushed - 30120201"
alt="HOBBYWING QuicRun WP 1060 Brushed - 30120201" title="HOBBYWING QuicRun WP 1060 Brushed - 30120201"

Compact Brushed ESC for 1/10 Scale Racing

For club racers and weekend builders, the HOBBYWING QuicRun WP 1060 Brushed ESC - 30120201 offers an accessible brushed ESC platform with clear setup steps and dependable protection. It suits a wide range of 1/10 scale cars and trucks.

Robust Design with Circuit Protection

The QuicRun WP 1060 integrates solid components and protective firmware to deliver consistent current handling and to guard against overloads. This makes it a good match for spirited driving without constant intervention.

Fast Setup with Simple Tuning Options

Auto throttle calibration gets the basics right quickly and jumper caps let you alter response and braking without external tools. That makes it easy to get on track and iterate settings between runs.

Specifications

  • Type: 1/10 Scale, Brushed
  • Waterproof: Yes
  • Continuous/Peak Current: 60A/360A
  • Input: 2-3S LiPo, 6-9 Cells NiMH
  • BEC Output: Switch Mode: 6V/3A
  • Connectors: TAMIYA Connector, 4.0 Bullet Connectors
  • Dimensions: 36.5x32.0x18.0mm
  • Weight: 39g

The QuicRun WP 1060 is a practical, low fuss ESC choice for 1/10 scale racers who want dependable protection and straightforward tuning without complex programming.

Yes, it supports 2S LiPo cells as well as 3S, so you can choose a balance of power and runtime that suits your driving style.
In normal use the built-in cooling is adequate, but if you run sustained high loads it is sensible to monitor temperatures and consider extra cooling if needed.
Connect the motor via the 4.0mm bullet connectors and plug the receiver lead into your receiver. The TAMIYA connector is used for battery input unless you rewire to suit your setup.
No, this model does not support firmware updates. Tuning is handled through hardware jumper settings and auto calibration.
