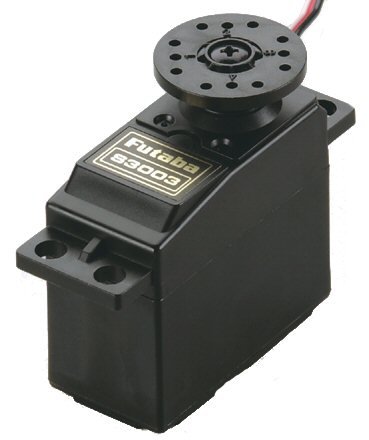

Futaba S3003 Standard Servo Digital  [S3003]

• This is actually the Futaba S3003 Standard Servo, that is is utilized for cars, ships, or where standard servos are employed.
  This is the option to these servos, S138,S148,S22,S38 and S12.
  It could produce high-current draw from your batteries if using NiMH or LiPo, cause them to with the capacity of delivering enough amps.

Includes:

• One S3003 standard servo with preinstalled circular servo horn FUTM0031
• Four brass eyelets
• Four Ebony rectangular plastic grommets (FUTM2348)
• Four servo mount screws
• One servo wheel 1-3/8" (35mm) in diameter
• One X-shape servo supply 1.5" (38mm) across
• One star shaped supply 1-1/4" (32mm) across
• Nylon gears

Specs and Features:

• Speed: 0.23 sec/60 Degree @ 4.8V , 0.19 sec/60 Degree @ 6V
• Torque: 44 oz-in (3.2 kg-cm) @ 4.8V
• 57 oz-in (4.1 kg-cm) @ 6V
• Measurements: 1.6" x 0.8 x 1.4" (40 x 20 x 36mm)
• Weight: 1.3oz (1-5/16oz) (37g)
• Connector: "J" type with approx. 5" lead
