Savox SB-2261MG High Torque Low-Profile Servo  [SB-2261MG]

Savox SB-2261MG - Low-profile Brushless Servo (57g/0.076sec/10kgcm/6v)
Price:
£105.29
Brand:
Savox
Model:
SB-2261MG
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
category
Write a review
alt="Savox SB-2261MG - Low-profile Brushless Servo (57g/0.076sec/10kgcm/6v)" title="Savox SB-2261MG - Low-profile Brushless Servo (57g/0.076sec/10kgcm/6v)"

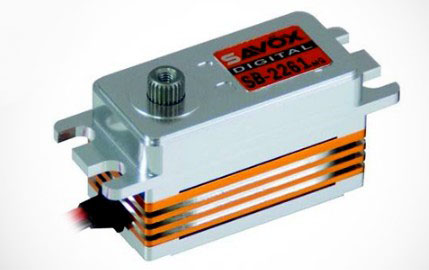

Savox SB-2261MG Compact Servo Summary

The Savox SB-2261MG low-profile brushless servo delivers precise movement in constrained 1/10 scale layouts. Its compact dimensions allow flexible installation while maintaining solid torque for demanding steering tasks.

Features and Build of the SB-2261MG

Built with competitive use in mind, the Savox SB-2261MG offers brushless efficiency and a full aluminum case for improved durability and heat control during extended runs.

Specifications

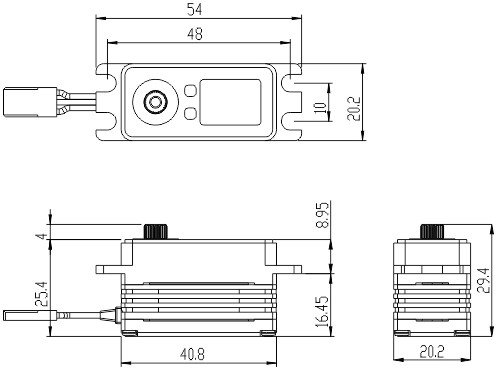

  • Dimensions: 40.8 x 20.2 x 25.4mm
  • Weight: 57.0g
  • Speed @ 4.8V: 0.10 sec/60°
  • Torque @ 4.8V: 8 kg/cm
  • Speed @ 6.0V: 0.076 sec/60°
  • Torque @ 6.0V: 10 kg/cm
  • Gear Type: Metal
  • Bearing Type: 2BB
  • Case Material: Full Aluminum
  • Spline: 25 Tooth

Whether for club racing or precise practice sessions, the Savox SB-2261MG provides consistent steering feel and dependable torque in a slim package.

Will the SB-2261MG handle high load steering on buggies?

The metal gears and 10 kg/cm torque at 6.0V provide strong resistance to steering loads, making it a good option for many buggy and truggy setups.

How can I extend the service life of this servo?

Keep the case clean, avoid shock impacts to the geartrain, and ensure correct voltage and cooling; periodic checks of horn and screws help prevent premature wear.

Is tuning required to use this with standard radios?

No special tuning is required for basic operation; set endpoints and centring in your transmitter to match your steering travel and trim preferences.

Can this servo be used with a variety of batteries?

It runs with common RC power sources, but using a stable supply at the recommended voltage yields the best speed and torque characteristics.

What spline and horn options fit the SB-2261MG?

The servo uses a 25 tooth spline; choose compatible horns to match your servo saver or steering linkage geometry for correct throw and centring.
