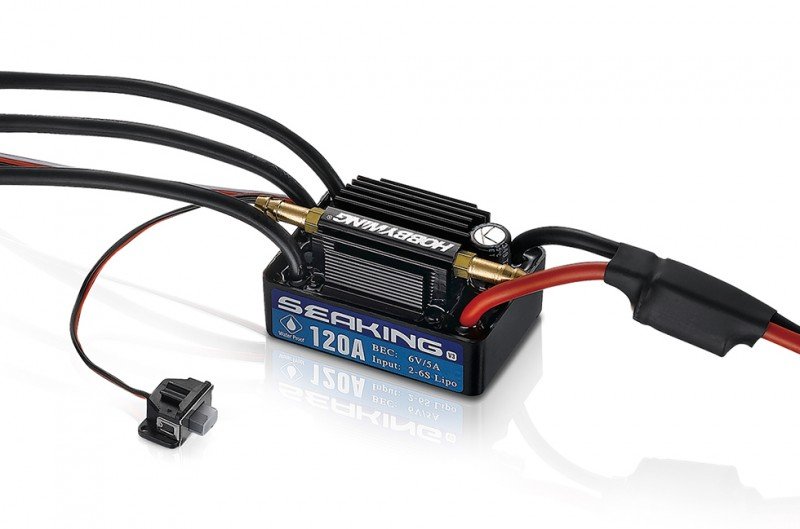

HOBBYWING Seaking 120A V3 ESC 30302360 Marine Grade RC Boat ESC  [HW-30302360]

HOBBYWING Seaking 120A V3 - 30302360
Price:
£64.22
Brand:
Hobbywing
Model:
HW-30302360
Condition:
Brand New
Write a review

Benefits of the Hobbywing Seaking 60A V3.1 for Model Boat Pilots

The Hobbywing Seaking 60A V3.1 provides consistent throttle response and essential protections, making it a sensible pick for pilots who want reliable behaviour in varied conditions.

Protected Electronics for Safer Runs

Constructed with durable components, the Seaking 60A V3.1 includes low-voltage and thermal protections plus signal-loss response to reduce the risk of damage during hard use.

High-Quality Water-Cooled Thermal Management

A copper bar cover channels heat into a CNC-machined aluminium water-cooled sink to keep temperatures down and maintain performance during extended operation.

True Waterproofing for On-Water Confidence

Designed to be 100 percent waterproof, the ESC allows confident use in wet environments without immediate need for extra sealing in most cases.

Onboard Switch Mode BEC

The integrated switch mode BEC delivers 6V at up to 6A, supporting popular high-torque servos and simplifying system wiring.

Fine-Tuned Control Algorithm

The ESC's special algorithm focuses on balanced acceleration and stability for cleaner throttle transitions whether you are racing or cruising.

Specifications

  • Continuous/Peak Current: 120A/720A
  • BEC Output: Switch Mode: 6V/5A
  • Waterproof: Yes
  • Size: 68.5x39.4x32mm
  • Weight: 150g
  • Boat Length: Suitable for boats less than 110cm

Overall, the Hobbywing Seaking 60A V3.1 is a practical, waterproof ESC option for a wide range of RC boat applications thanks to active cooling and a useful feature set.

Measure the mounting bay against the 68.5x39.4x32mm size and consider cable exit directions. A compact tray or foam mount can help secure the ESC in smaller hulls.
This model does not support firmware upgrades, but the factory firmware is set up to provide solid performance across typical use cases.
Use short, clean solder joints and heatshrink on connections. Keep power and signal wiring separated where possible and secure cables to avoid chafing inside the hull.
The switch mode BEC supplies 6V at rated current; it can support several servos depending on their combined current draw. If servos are high-load, consider an external power supply.
