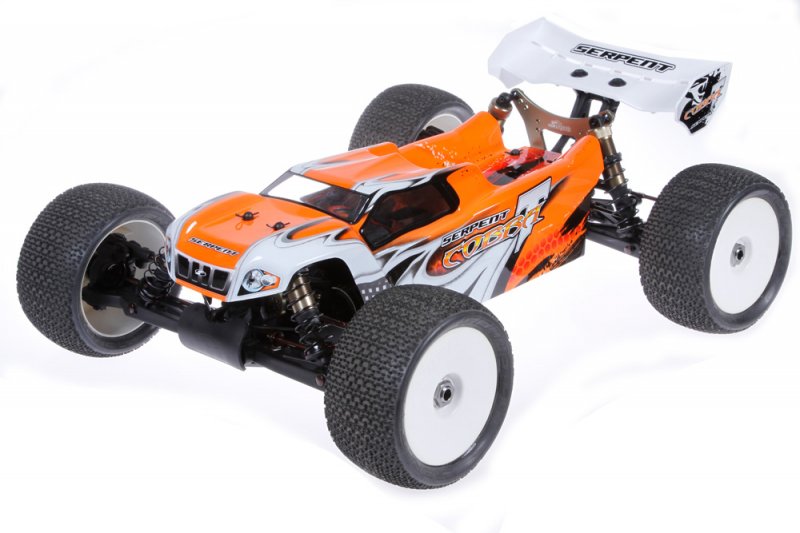

Serpent SER600039-G Serpent Cobra E-Truggy RTR Green  [SER600039-G]

Serpent SER600039-G Serpent Cobra E-Truggy RTR Green
Price:
£281.88
Brand:
Serpent
Model:
SER600039-G
Condition:
Brand New
Write a review
  • Introduction

    The Serpent Cobra E-Truggy in RTR trim is an amazing basher type automobile that may simply take many beating and its own also a good package to begin with genuine race ! In line with the Cobra E-Truggy it is the outright speed, great managing, dependability, rigidness and durability you need.

    The RTR package is dialed:
    -factory assembled rushing chassis
    -prepainted and precut low kind truggy human body and big composite backside wing
    -premounted truggy tyres/wheels/inserts
    -pre-set 4S to 6S capable waterproof 150A speedo ( DragonRC)
    -2000kv brushless longbody engine (DragonRC)
    -Digital 2.4ghz transmitter (DragonRC)
    -Metal gear servo 16kg ( DragonRC-Savox)
    -3 oilfilled geardifferentials
    -Big bore shocks with plastic dustboots and machined aluminium shocktowers
    -Spring steel transmission elements and turnbuckles, front part and right back cvd driveshafts
    -Front and straight back anti-roll bars
    -Large battery-cases with effortless felcron straps
    -Machined aluminium chassisplate
    -Fully ballraced
    -Batteries the car and transmitter are not included

    The bodyshell will come in orange, red, green, blue and red, plus a particular sort.

    Serpent offers a multitude of optional elements as a result of this automobile to improve performance, lighter or even even for nicer look.

  • Main features

    Car
    Fully expert pre put together and pre-set framework and electronic devices.

    Transmitter
    DragonRc 2.4 GHz steeringwheel sort transmitter with lots settings and good range. Includes tiny and light receiver.

    Speedo
    DragonRC waterproof speedcontroller with a massive 150A capability to manage the brushless engine and 4S or 6S battery pack power

    Motor
    DragonRC longbody 2000kV brushless motor with simple colorcoded connectors

    Body
    Prepainted and pre-cut low e-Truggy human anatomy, in 4 main colors orange, red, Green and Blue. ( in addition clear one available as optional)

    Tyres
    Premounted battle ready tyres / wheels with soft substances and pintype profile for amazing grip.

    Chassis
    Very narrow 3mm 7075T6 aluminium framework, with machining over the top face which makes it lighter in strategic areas also to control flex. Kick-up front side for appropriate landings. Angled part to boost cornering approval, and safeguarded and simple mounting part guards with 5 screws. Countersunk holes, pouches to position the suspension system system brackets. In general the Truggy is built to keep the extra weight extremely main and near to the centerline as possible, produce a fantastic basic stability.

    Side guards / battery pack trays
    Durable shaped composite component guards / electric batteries trays that proceed with the distinct the framework, and mount with 5 screws each part. Front and sides sufficient to hold the dirt out. The guards/trays create numerous protection. The batteries are set up in longtudinal fashion, maintaining the excess fat small in vehicle. The battery pack trays features easy to use Serpent noticeable felcron TM straps to secure the batteries setup. Fits 2S and 3S batteries.

    Motormount:
    The engine is put in the many optimal destination inside automobile, maintaining motor-forces and transmission components / placement in your head. Only one-screw must secure the BL engine, to your nicely designed durable machined aluminium motormount. Area for extra motor-cooling available as needed. The area for the motor permits mounting all popular buggy and (monster)truggy motors.

    Composite framework braces
    Allows the framework to flex which assists improve bump maneuvering. Front and rear.

    Front bumper
    Nicely curved front side bumper, identical to on the Cobra buggy, to protect leading anti-roll club, suspension brackets, and moves inline with kick-up chassis front side for safe landings.

    front side suspension
    Very long and durable composite reduced wishbones, along with top spring-steel trackrods. 2 paid off shock-mount jobs. Downstops may be used as required. Pivotball type anti-roll club rods.
    .
    Front steering / servo saver / angled
    Innovative angled front side steering construction to cut back the angle of distinction between your complete total caster and steering airplane. Because of this you will have less bump steer and a truer steering Ackerman through the whole variety of suspension.

    Adjustable springtime packed servo-saver system with interchangeable Ackermann meals. Utilising the design the steering bell cranks whenever changing the Ackerman you won't have to adjust your steering tie rods. You simply will simply must adjust your end points in your radio.. super easy to achieve usage of and set-up.

    The Inboard Bell crank keeps the lever and linkage in to the vehicle. It'll help with preventing injury to the steering system. Zero scrub radiuses on steering knuckle, assists in reducing the jacking impact produced by your steering knuckle offset. It includes a direct dropped while keeping the vehicles framework more degree while turning.

    The front roll center is changed quickly by moving the steering knuckle shims for their appropriate locations.

    Topped of with outstanding composite top-plate.

    Front steering-block / c-hubs
    Very durable front side steeringblock / C-hub setup .

    Drive-shafts
    very long and lightweight springtime metal products with pushed in steel pins, laser-engraved. Exact same size front and rear.

    Wheel-axles / wheel-nut
    Serpent springtime metal threaded wheel-axles with lightweight grey anodised aluminium wheel-nuts to keep the huge truggy wheels/tyres on program.

    Captured universal joints
    Guarantees you'll complete a race without loosing a pin or set screw. All elements, axles and drive train elements have actually actually really capture pins

    Front shocktower
    Light, strong and durable machined 5mm aluminium units with 5 jobs for shockangle.

    Shock-set front side and rear
    16mm big bore shocks, with difficult anodized precision threaded shock-bodies. Shockboots in silicone synthetic to keep the dirt away . Chromed shock-shafts for supersmooth shockaction . The bigger o bands provide less basic force and a greater seal without dragging regarding the shock shaft.

    Suspension brackets
    The hinge-pins / hingepin balls are captured in durable composite suspension system brackets . These capture the nylon roll-center inserts.

    Anti-roll club / anti-roll club linkage with pivotball
    The anti-roll pubs front and right back are made from high quality unique springtime steel, and are also captured on diff-cased in ballbearing for perfect guidance and control.

    Receiver package / servo mount / speedo mount
    Composite one piece radiobox to firmly install servo� s, speedo and receiver. For maximum safety the light receiver fits the top-case easy, with a small opening allowing cable to protrude. The speedo seats low on a plate just over the framework, for that reason brief cables lets you the engine. The servo is installed in a vertical fashion.

    Central diff
    Optimised primary gear-diff with 50T super-hard spur-gear . Smaller, compact design to minimize rotating mass toward max.

    Transmission shafts
    Durable but light and slim Serpent springtime metal, laser etched shafts.

    front side and right back diff
    Optimised gear-diff with superhard spur-gears . Tiny, compact design to reduce rotating mass towards optimum. Identical variation front component and back. Diff coupler in spring metal seated in big barings for durability.

    Rear shocktower
    Light, strong and durable machined 5mm aluminum product with 5 roles for shockangle.

    Rear uprights
    Durable composite back uprights with 3 camber positions

    Suspension brackets rear
    Durable composite units with eccentric inserts to alter set-up.

    Rear wing mount
    The composite back wing mount, permits to improve the angle of straight back wing.

    Rear wing
    Two stage high down force wing, has two levels of angle, that also includes 2 fins. Helps improve down force and right line capability

    Bodymounts
    Nylon bodymounts with wider sitting the human body, firmly fastened towards the shocktowers.

    Super Minimal profile e-Truck Body
    Improves appearance along side keeps the profile minimum. Comes precut and prepainted.

    Decals
    Applied towards human anatomy.

    Oils / grease
    Car is develop with a top quality silicone oils the diffs and shocks and black oil. Threadlock utilized in which needed.

    Manual
    Full color manual showing the automobile, specs, recommendations and exploded views. The transmitter and speedo have actually actually tiny split manuals included.

    Box
    Full color protective industry to re-use for automobile transportation or tyres.
