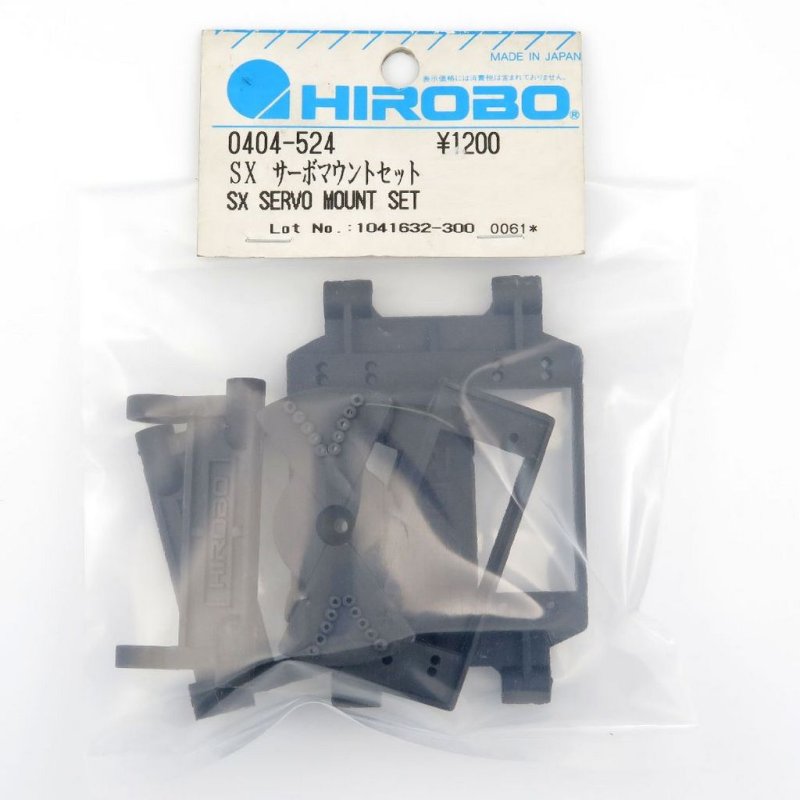

Tsurugi SX Precision Servo Mount and Alignment Plate - HI0404524 by Hirobo  [HI0404524]

Servo mounting and alignment notes

This RC-scale servo mounting set is intended for Tsurugi SX series helicopter frames and other Hirobo-compatible layouts. The component supplies a stable mounting interface for standard servos, helping maintain servo horn and linkage geometry for consistent control response.

The mount is listed for parts use with Eagle, Freya, EX and SX frames; check the mounting points on your airframe before fitting. Installation commonly replaces or supplements the frame’s existing mounting plates and is intended to work with the standard hardware and hole patterns supplied by the airframe.

For tuning and setup the mount plays a mechanical role: it fixes servo position and orientation and helps preserve linkage geometry when swapping servos or adjusting travel and neutral. After installation, verify servo horn alignment and linkage lengths to restore proper swash and cyclic behaviour.
