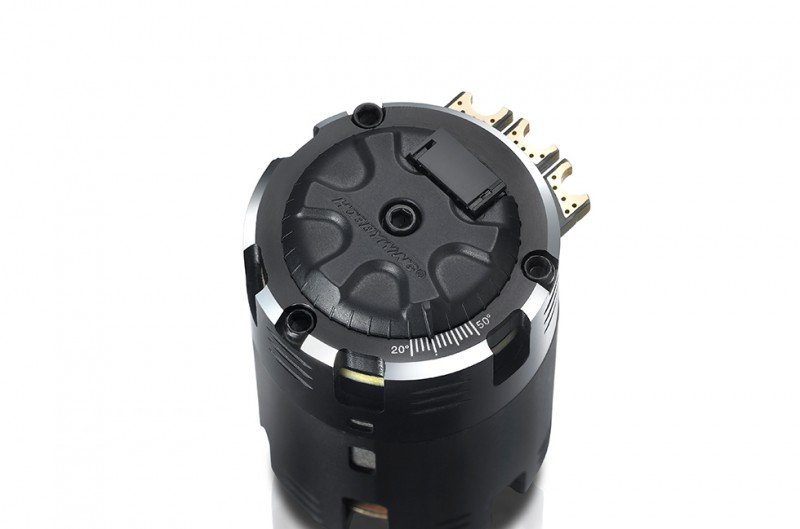

Performance and Control from the Hobbywing XERUN-Bandit-G2-4.5T

The Hobbywing XERUN-Bandit-G2-4.5T, model number 30101151, is aimed at 1/10 scale car pilots who need a sensored brushless motor that balances efficiency and punch. With an 8100 KV rating and adjustable timing from 20 to 50 degrees, it offers scope for setup tuning across different tracks.

Controlled acceleration and predictable feel

The two-pole, sensored design of the XERUN-Bandit-G2-4.5T produces consistent, controllable power delivery and improved low-speed handling. Its 36mm outer diameter and 52.5mm length make it compatible with a wide range of touring and on-road chassis.

Compact weight with respectable output

Designed for 2S LiPo use, the motor can reach a maximum power of 400W while drawing 10.8A at no load and up to 125A at peak. Weighing 188g, it adds minimal mass while supplying the performance needed for spirited driving.

Specifications

  • Scale: 1/10th
  • Motor Type: Brushless Sensored
  • Pole Count: 2
  • KV Rating: 8100
  • LiPo Cells: 2S
  • No-load Current: 10.8A
  • Max. Power Output: 400W
  • Current at Max. Power: 125A
  • Outer Diameter: 36mm
  • Length: 52.5mm
  • Shaft Diameter: 3.17mm
  • Weight: 188g
  • Timing: 20-50 Degrees (Adjustable)

A straightforward option for those wanting tunable timing and reliable sensored control in a lightweight package.

Will this motor pair well with a standard sensored ESC?

Yes, pairing the 30101151 with a sensored ESC will give the best low-speed control and smoother throttle transitions, particularly during launches.

Is the shaft size standard for pinion fitting?

The motor uses a 3.17mm shaft diameter which fits common 1/10 pinions; ensure you select the correct set screws and mesh to avoid slippage.

How should I approach timing changes?

Timing is adjustable from 20 to 50 degrees. Make incremental changes and test on the bench or a short run to find the best trade off between torque and top speed for your setup.
