Yokomo YZ-114PLUSNA Multi Purpose AC/DC Charger and Discharger  [YZ-114PLUSNA]

Yokomo YZ-114PLUSNA YZ-114 PLUS AC/DC Charger/Discharger
Price:
£75.14
Brand:
Yokomo
Model:
YZ-114PLUSNA
GTIN:
0639342194964
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
category
Write a review
alt="Yokomo YZ-114PLUSNA YZ-114 PLUS AC/DC Charger/Discharger" title="Yokomo YZ-114PLUSNA YZ-114 PLUS AC/DC Charger/Discharger"
alt="Yokomo YZ-114PLUSNA YZ-114 PLUS AC/DC Charger/Discharger" title="Yokomo YZ-114PLUSNA YZ-114 PLUS AC/DC Charger/Discharger"
alt="Yokomo YZ-114PLUSNA YZ-114 PLUS AC/DC Charger/Discharger" title="Yokomo YZ-114PLUSNA YZ-114 PLUS AC/DC Charger/Discharger"

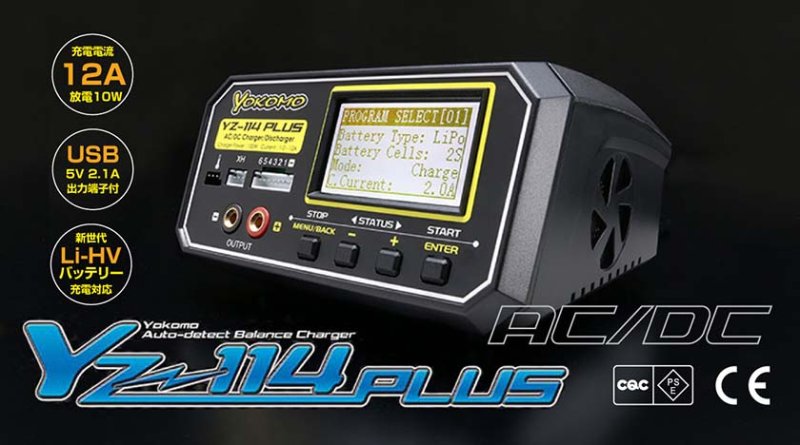

Yokomo YZ-114PLUSNA Charger Summary

The Yokomo YZ-114PLUSNA is a flexible charger suited to hobbyists who run different battery types. Its black styling and a clear LCD screen make setup and monitoring straightforward while providing a wide feature set.

Charge Profiles for Regular Hobby Use

The unit offers selectable charge and discharge settings that are useful for both practice sessions and competitive preparation. It supports Li-po, Li-fe, Li-ion and Li-HV packs between 1 and 6 cells, plus Ni-MH and Ni-cd packs up to 15 cells.

Useful Maintenance and Storage Options

Storage and discharge functions on the YZ-114PLUSNA allow you to bring packs to appropriate voltages for storage and to discharge cells for long term care, helping maintain usable capacity.

Specifications

  • Input Voltage: AC 100-240V, DC 11-18V
  • Charging Current: 0.1-6.0A
  • Maximum Charging Voltage: 4.35V/cell
  • Discharge Current: 0.1-5.0A
  • Compatible Batteries: Li-po/Li-fe/Li-ion/Li-HV (1-6 cells), Ni-MH/Ni-cd (1-15 cells)
  • Output Port: Banana plug type, USB 5.0V/2.1A
  • Charging Modes: Various modes for Li-po, Li-fe, Li-ion, Li-HV, Ni-MH, Ni-cd
  • Safety Features: Current limit, voltage monitoring, capacity limit, temperature limit, time limit

The Yokomo YZ-114PLUSNA is a capable bench charger for model flyers and drivers who want AC/DC convenience plus storage and discharge options to look after their packs.
Remark :
Due to limited stock availability, please notice that some Yokomo items may have to order from the factory and the ready time is around 4-6 weeks. Customer purchases the item is assumed to accept the waiting time which allows us to order directly from the manufacturer if the item is out of our warehouse.

How do I choose the right charge current?

Pick a charge rate suited to the battery maker's recommendations; lower currents are gentler, while the unit's adjustable range lets you match the pack's specifications.

Does the charger support high voltage Li chemistries?

Yes, it lists compatibility with Li-HV packs within the 1-6 cell range; use the correct mode when working with high voltage chemistries.

What connectors are provided for output?

The charger offers banana plug style output and also includes a USB 5.0V/2.1A port for powering small devices or charging phones at the bench.

Can I leave the charger unattended?

While the charger has multiple safety protections, it is recommended to check the unit during charging cycles and not to leave packs entirely unattended.
