AC/DC Multi-Function Charger Yokomo YOKYZ114PRO (AC100V/DC12V)  [YOKYZ114PRO]

Yokomo YZ-114PRO - Charger/Discherger and Cycler (AC100V/DC12V)
Price:
£134.80
Brand:
Yokomo
Model:
YOKYZ114PRO
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
category
Write a review
alt="Yokomo YZ-114PRO - Charger/Discherger and Cycler (AC100V/DC12V)" title="Yokomo YZ-114PRO - Charger/Discherger and Cycler (AC100V/DC12V)"
alt="Yokomo YZ-114PRO - Charger/Discherger and Cycler (AC100V/DC12V)" title="Yokomo YZ-114PRO - Charger/Discherger and Cycler (AC100V/DC12V)"
alt="Yokomo YZ-114PRO - Charger/Discherger and Cycler (AC100V/DC12V)" title="Yokomo YZ-114PRO - Charger/Discherger and Cycler (AC100V/DC12V)"
alt="Yokomo YZ-114PRO - Charger/Discherger and Cycler (AC100V/DC12V)" title="Yokomo YZ-114PRO - Charger/Discherger and Cycler (AC100V/DC12V)"

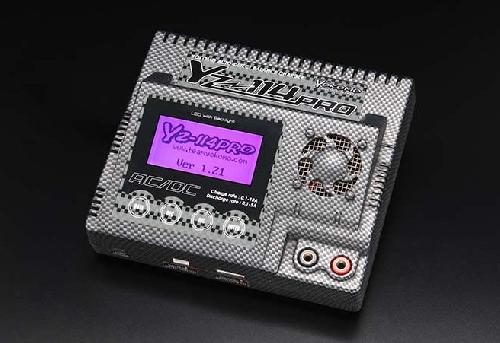

Multi-function battery charger for RC use

The Yokomo YOKYZ114PRO is a multi-function AC/DC charger, discharger and cycler intended for RC battery maintenance and pack preparation. It runs from AC100-240V or DC11-15V and provides charging up to 10A and discharging up to 5A for supported chemistries. The device includes balance charging for multi-cell packs and features a 128 x 64, 7-color LCD that plots charge and discharge behavior and auto-detects cell count so you can review state of charge and balance on-screen.

In workshop practice the YOKYZ114PRO is used to condition packs prior to installation, to cycle batteries for capacity assessment, and to balance Li-based packs before use. Mode and charge state are reflected by the backlight color, and the charger offers delta-peak detection plus configurable limits for safe handling of Ni-MH and Ni-Cd batteries.

Packing includes

  • Charger main unit - 1 pcs
  • AC100V power cable - 1 pcs
  • DC12V power cable - 1 pcs
  • 7.2V battery connector lead - 1 pcs
  • Mini battery connecting cord - 1 pcs
  • Banana connector with lead - 1 pcs
  • Alligator clip connector - 1 pcs

Specifications

  • Item: Charger/Discharger and Cycler
  • Model Number: YOKYZ114PRO
  • Compatibility: Li-po/Li-fe 1-5cell, Ni-MH/Ni-Cd 1-14cell
  • Charge Current: 0.1A-10.0A, max 10A
  • Discharge Current: 0.1A-5.0A, max 5A
  • Input Power: AC100-240V (50/60Hz) or DC11-15V
  • Display: 128 x 64 graphical, 7-color LCD backlight
  • Charge Limit: 85W
  • Discharge Limit: 20W
  • Dimensions: 172 x 154 x 58 mm

Compatible Batteries

  • Li-po 1-5cell (3.7-18.5V)
  • Li-fe 1-5cell (3.3-16.5V)
  • Ni-MH / Ni-Cd 1-14cell (1.2-16.8V)

When AC or DC power is available, the YOKYZ114PRO offers balanced charging, a clear graphical display and flexible current options to support routine battery care and pack testing.
Remark :
Due to limited stock availability, please notice that some Yokomo items may have to order from the factory and the ready time is around 4-6 weeks. Customer purchases the item is assumed to accept the waiting time which allows us to order directly from the manufacturer if the item is out of our warehouse.

What battery types does this charger accommodate?

It accommodates Li-po and Li-fe packs from 1 to 5 cells, and Ni-MH/Ni-Cd packs from 1 to 14 cells, as stated under compatibility.

What are the maximum power and current ratings?

Maximum charging current is 10A and maximum discharging current is 5A. The charge limit is 85W and the discharge limit is 20W, per the specifications.

Is it suitable for field use with a DC source?

Yes. The unit accepts DC input between 11V and 15V, so it can be used with a compatible DC source such as a vehicle battery or regulated portable supply.

How does the display help during charging?

The 128 x 64 graphical LCD with seven-color backlight displays charge and discharge plots and automatically detects cell count, enabling visual tracking of the pack’s behaviour during cycles.

What indicators and protection features does the charger provide?

It uses backlight color changes to indicate operational states and includes balance charging and delta-peak detection to assist safe charging and prevent overcharge conditions on supported chemistries.
