Yokomo YZ-2CA/DTM 3G Motor Mount Z2-304C-2 [Z2-304C-2]

Yokomo Z2-304C-2 3G Motor Mount for YZ-2CA/DTM

Price:

£7.23

Brand:

Yokomo

Model:

Z2-304C-2

GTIN:

3888

Not Available

Please kindly input your name and email address, we will inform you once we have the restocking.

Or you may find similar product under the
Spares / Hop-ups - Yokomo - Off-Road Chassis Parts category

Write a review

alt="Yokomo Z2-304C-2 3G Motor Mount for YZ-2CA/DTM" title="Yokomo Z2-304C-2 3G Motor Mount for YZ-2CA/DTM"

Description
FAQ

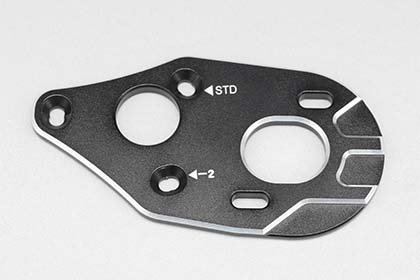

Motor mount overview for YZ-2CA/DTM

This machined aluminium motor plate is intended for use with raised gearbox layouts on Yokomo YZ-2CA/DTM machines. Switching which motor mounting holes are used changes motor height so the drive line can be matched when the gearbox is positioned higher using the relevant spacer set.

The plate offers two motor mounting hole positions to suit various motor offsets. Selecting the hole marked "-2" returns the motor to the stock longitudinal location when the gearbox is raised by 2mm, helping to maintain proper pinion and spur mesh without additional shimming. The item is designed as a direct-fit replacement motor plate for compatible chassis.

Fitting notes: secure the mount to the chassis and gearbox, verify gear mesh after moving the motor, and ensure motor alignment before final screw torque.

Compatible Models

B-YZ2DTMW
B-YZ2DTM2
B-YZ2CAL2
B-YZ2DTM2S
B-YZ2
B-YZ2CA
B-YZ2DT
B-YZ2DTM

Remark :

Due to limited stock availability, please notice that some Yokomo items may have to order from the factory and the ready time is around 4-6 weeks. Customer purchases the item is assumed to accept the waiting time which allows us to order directly from the manufacturer if the item is out of our warehouse.

Will this plate fit other YZ-2 variants not listed?

The plate is intended for the listed YZ-2CA/DTM family models. Fitment to other variants depends on chassis motor plate geometry; verify mounting hole pattern before assuming compatibility.

What should I inspect after changing the motor hole position?

After changing positions check pinion to spur contact, ensure there is no binding through the drivetrain, and confirm the motor sits square in its bracket. Make small adjustments as needed before fully tightening fasteners.
